8 Inch Portable Patient Monitor For Hospital Wall Mounted Stand Optional

8 Inch Portable High Performance Convenient Operation Patient Monitor For Hospital Wall Mounted Stand Optional

8 inch portable patient monitor; lightweight; wall mounted Various interfaces: A single guide, standard, large font, all leads.

Introduction

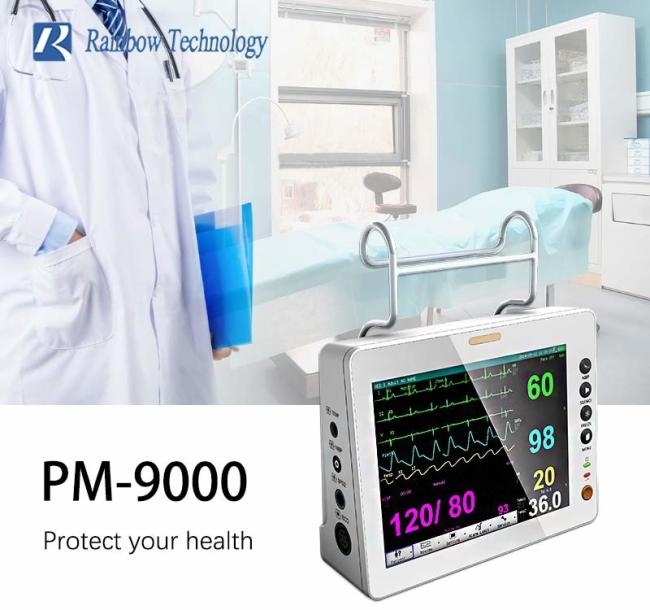

PM-9000 8 inch multi-parameter monitor can be widely used in surgery, emergency, ICU, CCU, and various clinical Guardianship. Due to the import of high brightness original True Color IFT LCD, which makes a clear visual interface components; And its small size and light weight its not just suitable for the patient's hospital bed but also for ambulances and other mobile environment for adults and children who apply.
PM-9000 8 inch Multi-parameter can continuously test the patients' ECG, heart rate, noninvasive blood pressure (systolic pressure, diastolic and mean arterial pressure), blood oxygen saturation, respiration, body temperature and other important parameters signs custody ECG waveform screen display waveform, respiration, blood pressure, oxygen waveform measurements, heart rate, respiration and blood oxygen measurement data frequency, temperature and other parameters, such as oxygen ECG waveform and waveform data can be realized intervals. The trend has also shown graphic form and function to facilitate medical diagnosis.

General parameters
Size: 220mm × 180mm ×90mm
Weight: 1.6Kg (including embedded batteries)
Display screen: 8 inch TFT Color LCD Flat
Resolution: 800× 600
Mode: continuous operation

 Working environment
Environment temperature: 5°C-40°
Storage temperature-20 C-+55°C
Relative humidity: ≤85%
Atmospheric pressure:80-106kpa
Power supply:220v 50Hz
Fuse:F2AL250V 5×20

Characteristics

• 8 inch color TFT display. With metal hanger design, can be suspended and placed upright.
• Using the new digital oxygen DSP algorithm, excellent weak perfusion and anti-motion performance.
• Pulse variation index PVI.
• Support for the export of USB data and PDF.
• Unique Chinese and English real person voice alarm.
• 720 hours trend data and 12 hours of all waveforms, USB data export, monitoring data can be viewed on the computer.
• 7 display interface: standard, large font, trend chart, respiratoryoxygenation chart, ECG all leads, other bed observation.
  Unit Package&accessaries
• Model:PM-90008 inch Color Portable Monitor
  Specifications:ECG; NIBP; SPO2; TEMP; HR, Breath.
• Package size: 25.5*19.5*21cm
• Gross Weight: 3.5Kg

• Standard 5-lead ECG conductance joint connecting cables	1set
  Standard Adult blood pressure cuffs	1set
  FINGER oxygen probes and extends cables	1set
  Temperature probe and extend cable	1set
  Power Plug Line	1set
  Grounding wires	1set
  English operation manual	1set
