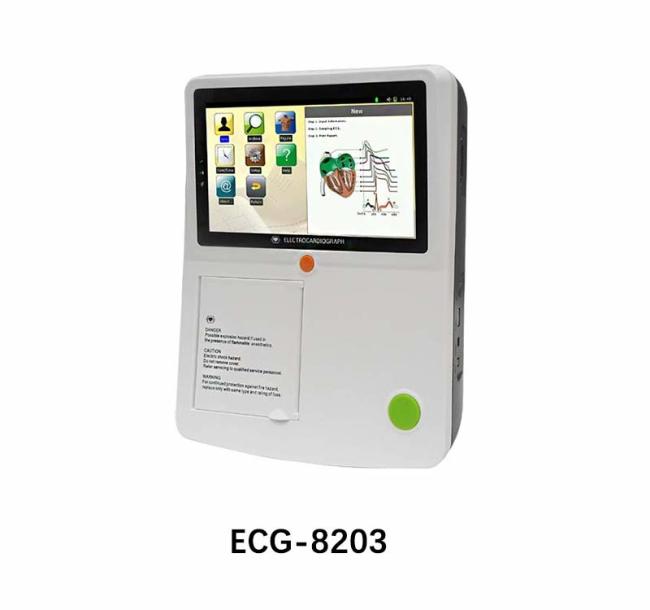

Li-Ion Electronic Heart Digital Ekg Ecg Machine 3 Channel 12 Lead Rechargeable
Rechargeable li-ion Electronic Heart Digital 3 Channel 12 Lead ekg ecg machine portable on special price
Features:
1. 7'' color touch-screen,both push-button and touch operation.
2. Automatic measurement,calculation,analysis,waveform freezing.
3. Support USB flash disk&SD memory
4. Data transmitting to PC via USB
5. Patient's information can be imput
6. Historical data can be reviewed and printed
7. Built-in rechargeable li-ion battery,AC/DC power conversion
8. Sleep mode to save energy and extend TFT SCR screen life
9. Support USB keyboard/Mouse
10. Lead off& lack off paper detection function
11. 7 level printing thick can be chosen
12. Adapt to 110-230V,50/60HZ AC power supply
Packing list:
| Name | QTY | Name | QTY |
| ECG machine | 1 | Fuse | 2 |
| ECG cable | 1 | Operation manual | 1 |
| Limb electrodes | 4 | ||
| Chest electrodes | 6 | ||
| Grounding wire | 1 | ||
| Print paper | 1 roll | ||
| Power line | 1 |
Parameters of ECG Machine
| CMRR | ≥ 100dB, with AC Filter | Calibrating voltage | 1mV± 3% |
| Input circuit | Floating | Voltage tolerance | ± 500mV |
| Input circuit current | ≤ 0.1µ A | Time constant | > 3.2s |
| Resolution | 12bit/1000Hz | Frequent response | 0.05Hz~150Hz |
| Operation mode | Manual/Auto | Noise level | ≤ 15µ Vp-p |
| Filter | AC. EMG Filter | Threshold | ≤ 20µ V |
| Drift filter | Anti-Drift System | Paper speed | 12.5, 25, 50mm/s (± 3%) |
| Input Impedance | > 50MΩ | Sensitivity | 5,10,20mm/mV |
| Patient current leakage | < 10µ A | Recorder | High resolution thermal printer |
| Specification of fuse | T1.6A 250V Ø5×20 | Battery | Built-in rechargeable Li-ion battery 11.1V(2200mAh) |
| Recording paper | Thermal recording paper | Package | 256mm*204mm*66mm |
We are based in Hunan, China, start from 1997,sell to Domestic Market(50.00%),Southeast Asia(15.00%),Africa(10.00%),Central America(10.00%),Mid East(8.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Multi parameter Patient Monitor,ECG Machine,Infusion Pump,Syringe Pump,Nutritional Pump
4. why should you buy from us not from other suppliers?
Hunan Rainbow Technology Co,Ltd is a professional manufacturer and wholesaler in monitor with 19-year experience. In order to meets the marketing demand, our company cooperate with the America RMS Company to release a serials of PM-9000 parameters monitor.
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese
