Screw Thread Brass Globe Valve Medium Water Dn50 1.6mpa
Price:
Negotiable
MOQ:
1000 Pcs
Delivery Time:
5-8 Work days
Brand:
Y
Product Description

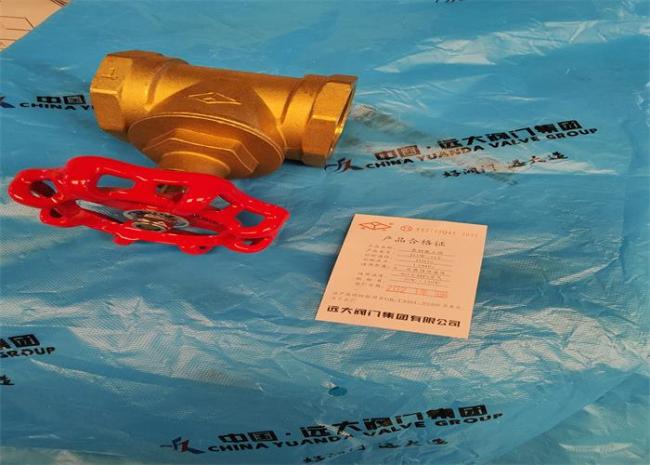

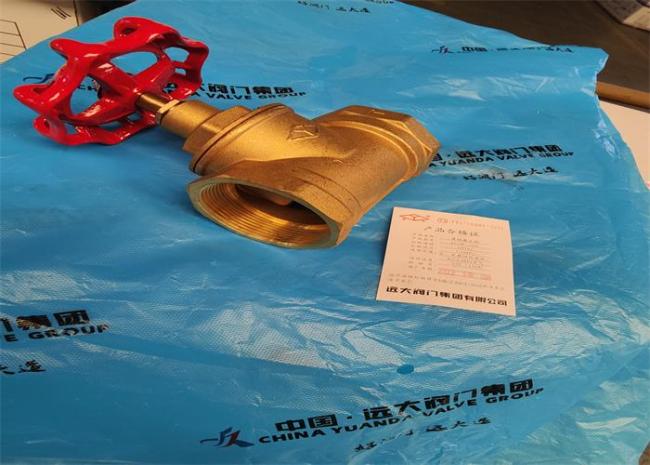

Screw Thread Globe Valve Medium Water DN50, 1.6mpa Brass Water Valve
Usage:
This valve is mainly used to cut off or put through the pipeline medium, generally not used for regulating flow
Connection size
| Type | G | Connection(mm) | ||
| L | H | D0 | ||
|
J11W-10/16T
|
1/2 | 44.5 | 67 | 52 |
| 3/4 | 51 | 79 | 60 | |
| 1 | 64 | 90.5 | 65 | |
| 1 1/4 | 76.5 | 100 | 73.5 | |
| 1 1/2 | 80.5 | 108.5 | 75 | |
| 2 | 97.5 | 124 | 96 | |
Major performance specifications
| Type |
Pressure MPa |
Test pressure | Suitable Temperature ℃ | Suitable Medium | |||
| Strength(water) | Enclose(water) | ||||||
| Test pressure MPa | Test time(minutes) | Test pressure MPa | Test time(minutes) | ||||
| J11W-16T | 1.6 | 2.4 | 10 | 1.8 | 10 | ≤150 | Water,Non corrosive liquid, ≤0.6 MPa Air |
| J11W-10T | 1.0 | 2.4 | 10 | 1.8 | 10 | ≤150 | Water,Non corrosive liquid, ≤0.6 MPa Air |
Main part material
| Part Name | J11W-10/16T |
| Material | |
| Body,Bonnet | HPb59-1 |
| Stem | HPb57-3 |
| Disc | HPb59-1 |
Structure and principle of action
1. The J11W-16T is connected with thread, and uses GB/T8464 internal thread stop valve.
2. The valve is composed of a valve body, disc, cover, stem and handwheel, etc., by turning the handwheel to rotate the stem, so as to drive the disc up or down to achieve the purpose of opening and closing.
