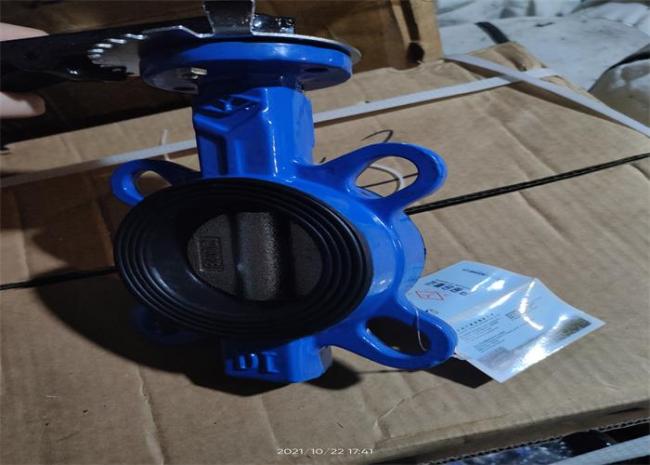

API DIN 2 Inch Wafer Butterfly Valve PN1.0/1.6Mpa Pinless Cast Iron
API/ DIN Standard/ Cast Iron Material/ PN1.0/ PN1.6Mpa Pinless Wafer Butterfly Valve
Introduce
The butterfly plate of the handle butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical channel of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis with a rotation angle of 0 ° - 90 °. When it rotates to 90 °, the valve is fully open. This valve is generally installed horizontally

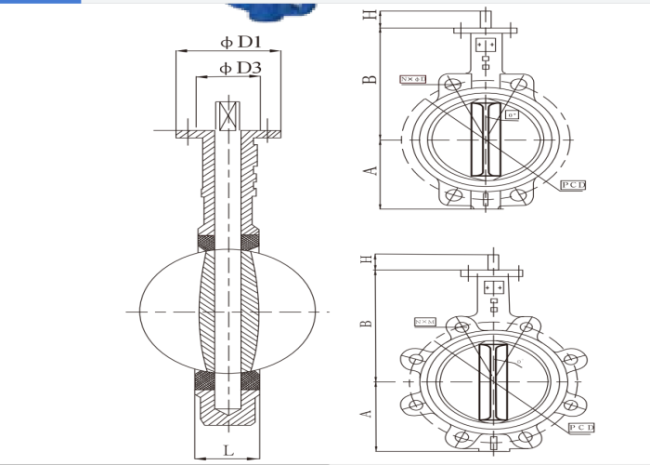

Connection size
| Size | DN | A | B | L | фD1 | фD3 | H |
| 1.5" | 40 | 69 | 136 | 32 | 65 | 35.25 | 32 |
| 2" | 50 | 80 | 161 | 42.0 | 65.0 | 35.25 | 32 |
| 2-1/2 " | 65 | 89 | 175 | 44.7 | 65.0 | 35.25 | 32.0 |
| 3" | 80 | 95 | 181 | 45.2 | 65.0 | 35.25 | 32.0 |
| 4" | 100 | 114 | 200 | 52.1 | 90.0 | 55.25 | 32.0 |
| 5 " | 125 | 127 | 213 | 54 | 90.0 | 55.25 | 32.0 |
| 6" | 150 | 139 | 226 | 55.8 | 90.0 | 55.25 | 32.0 |
| 8" | 200 | 175 | 260 | 60.6 | 125.0 | 70.25 | 40.0 |
| 10" | 250 | 203 | 292 | 65.6 | 125.0 | 70.25 | 40.0 |
| 12" | 300 | 242 | 337 | 77 | 125.0 | 70.25 | 40 |
Feature
| Norminal pressure | 1.0/1.6 Mpa |
| Suitbk temperature | ≤ 80°C |
| Seal test | 1.7/1.8MPa |
| Shell test | 1.5/2.4mpa |
| Suitable medium: | water |
Use:
It is used for gas pipeline in sulfuric acid industry: inlet and outlet of blower in front of furnace, inlet and outlet of relay fan, electric demist series and connecting valve, inlet and outlet of S02 main blower, converter regulation, inlet and outlet of preheater, etc.
It is used in the sulfur burning, conversion and dry absorption section of sulfur based sulfuric acid system. It is the preferred brand of valves for sulfur based sulfuric acid plant. It is considered by the majority of users as butterfly valves with good sealing performance, light operation, secondary corrosion, high temperature resistance, convenient, flexible operation, safe and reliable use, which have been widely popularized and used.
It is also widely used in the pipelines of SO2, steam, air, gas, ammonia, CO2 gas, oil products, water, brine, alkali liquor, seawater, nitric acid, hydrochloric acid, sulfuric acid, phosphoric acid and other media in chemical, petrochemical, smelting, pharmaceutical, food and other industries as regulating and intercepting devices.
