Worm Gear Operated Wafer Butterfly Valve With Pin 1.0/1.6mpa Ductile Iron

Price Negotiable

Price: Negotiable

MOQ: 100 pcs

Delivery Time: 5-8 work days

Brand: Y

Product Description

Worm Gear Driven Whole Shaft 1.0/1.6 Mpa With Pin Wafer Butterfly Valve

Usage:

This valve is mainly used to cut off the fluid it also can be designed to have the function of adjusting and cutting off the fluid. usery can choosepin or without pin type according to different requirements.

Part materials

Body	Gery Iron Ductile Iron
Seat	NBR/EPDM
Disc	Ductile Iron
Stem	Steel Stainless Steel

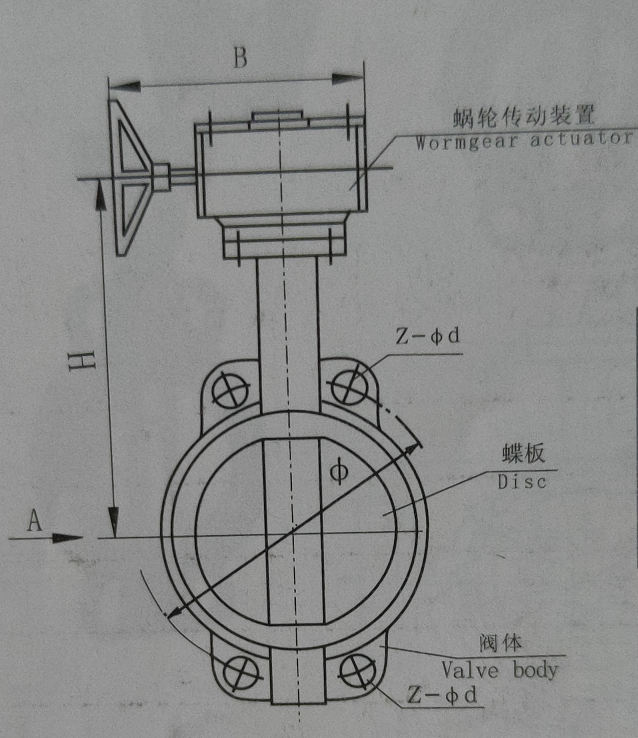

Dimension

DN	ф	H	B	Z-фd	L
DN50 (2" )	125	200	220	4-ф18	43
DN65 (2.5" )	145	220	220	4-ф18	46
DN80 (3")	160	230	220	4-ф18	46
DN100 (4" )	180	240	220	4-ф18	52
DN125 (5")	210	250	268	4-ф18	56
DN150 (6")	240	265	268	4-ф23	56
DN200 (8")	295	310	289	4-ф23	60
DN250 (10" )	355	340	289	4-ф25	68
DN300 (12" )	410	380	289	4-ф30	78
DN35O (14" )	470	420	289	4-ф30	78
DN400 (16" )	515	522	363	4-ф31	88
DN450 (18")	565	536	363	4-ф31	106
DN500 (20" )	620	604	363	4-ф31	132
DN600 ( 24")	725	695	427	4-ф34	154
DN700	840	811	482	4-M27	165
DN800	952	893	482	4-M30	190
DN900	1050	903	529	4-M30	211
DN1000	1160	983	529	4-M33	224
