DIN Cast Steel Lift Check Valve 1.0/1.6/2.5 Mpa Flange End Anti Corrosion

Price Negotiable

Price: Negotiable

MOQ: 10 pcs

Delivery Time: 5-8 work days

Brand: Y

Product Description

DIN Standard Cast Steel Pressure 1.0/1.6/2.5 Mpa Flange End Lift Check Valve

Introduction

Lift check valve refers to the valve that automatically opens and closes the valve disc depending on the flow of the medium itself to prevent the backflow of the medium. It is also known as check valve, one-way valve, reverse flow valve and back pressure valve. The check valve belongs to an automatic valve, which is mainly used to prevent medium backflow, reverse rotation of pump and driving motor, and discharge of container medium. The check valve can also be used on the pipeline to supply the auxiliary system in which the pressure may rise above the system pressure.

Feature

Body material	WCB/ 20#/Steel /DIN17245GS
Disc	WCB/ 20#/Steel /DIN17245GS C25-CR13
Design and manufacture	DIN 3840 BS EN1868
Face to Face	DIN 3202, BS EN 558-1
Flange End	DIN 2543, BS EN1092-1
Inspection	DIN 3230, BSEN 12569
Nominal pressure	1.0/1.6/2.5/4.0/6.3 mpa
Stengh Testing	1.5/2.4/3.8/6.15/9.75 mpa
Seal Test	1.1/1.8/2.8/4.51/7.15

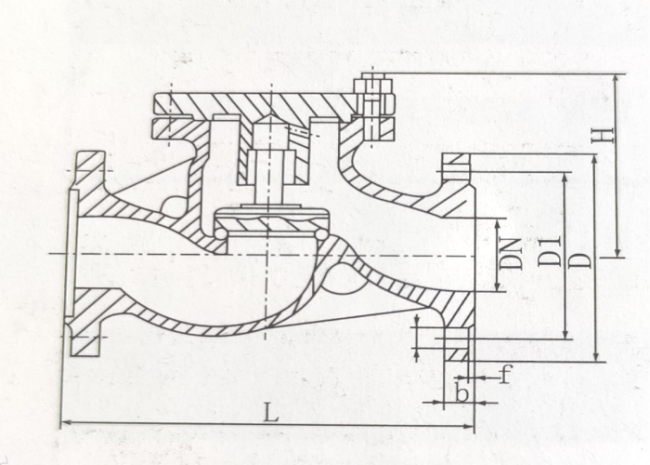

Dimension

PN16(DIN3202-F1)			PN25(DIN 3202-F1)			PN40(DIN 3202-F1)			PN63(DIN3202-F1)
DN	L-RF	H	DN	L-RF	H	DN	L-RF	H	DN	L-RF	H
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
15	130	77	15	130	100	15	130	100	15	210	100
20	150	77	20	150	105	20	150	105	20	230	110
25	160	80	25	160	120	25	160	120	25	230	125
32	180	85	3	180	130	32	180	130	32	260	140
40	200	95	40	200	135	40	200	135	40	260	168
50	230	105	50	230	149	50	230	149	50	300	170
65	290	120	65	290	160	65	290	160	65	340	188
80	310	130	80	310	169	80	310	169	80	380	205
100	350	140	100	350	194	100	350	194	100	430	230
125	400	155	125	400	222	125	400	225	125	500	240
150	480	180	150	480	255	150	480	255	150	550	265
200	600	215	200	600	305	300	600	305	200	650	310
250	730	260	250	730	355	250	730	360	250	775
300	850	315	300	850	410	300	850	415	300	900
350	980		350	980
400	1100		400	1100
