Cast Iron Leakproof Flanged Air Valve Single Port Exhaust Thread Connection

Price Negotiable
Price: Negotiable
MOQ: 10 pcs
Delivery Time: 5-8 work days
Brand: Y
Product Description

Cast Iron Pressure 1.0 Mpa Single Port Exhaust Valve Flanged Air Valve





Introduction



This product is used at the high point or closed place on the pipeline. To remove the gas in the pipeline to dredge the pipeline and operate normally in operation. The exhaust valve is connected in two ways (screw thread and flange

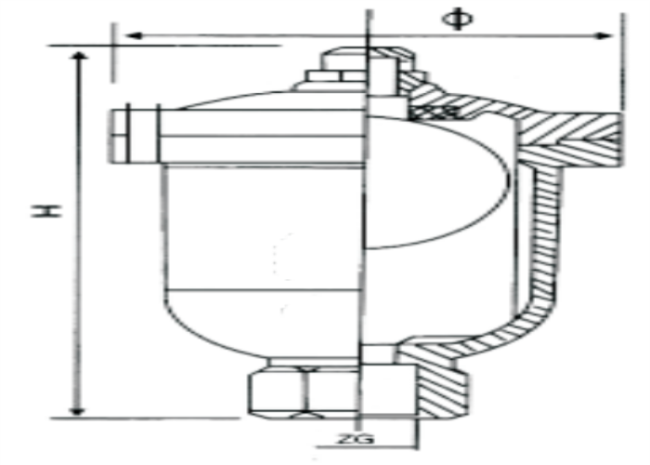

Dimension 1



DN(mm) Dimension (mm)
ZG ф H
20 3/4 135 205
25 1 135 205
40 1 1/2 150 205
50 2 150 205

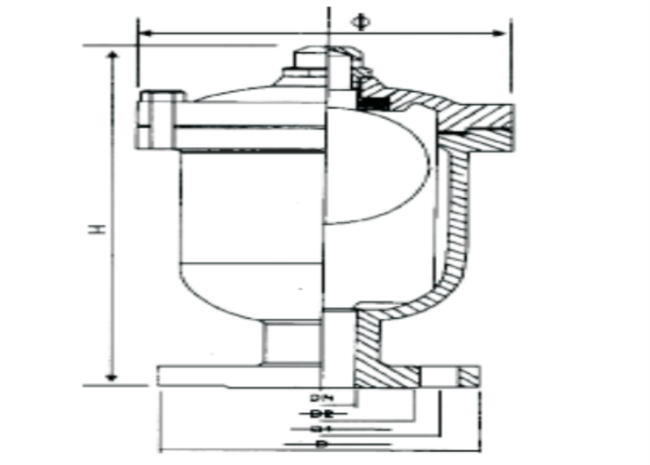

Dimension 2

 DN(mm) Dimension(mm)
D D1 ф H
20 105 75 120 185
25 115 85 120 185
40 145 115 150 205
50 160 125 150 205
