Multifunctional Water Pump Flow Control Valve , 1.6mpa NBR Pressure Control Valve
Price:
Negotiable
MOQ:
10 pcs
Delivery Time:
5-8 work days
Brand:
Y
Product Description

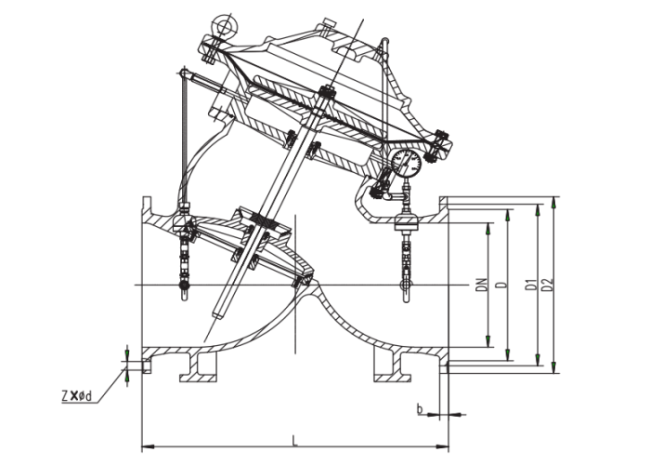

Ductile Iron Multifunctional Water Pump Control Valve Water Conservancy Valve
Usage:
This product is used in the water pump outlet pipeline of high-rise building water supply system and other water supply systems to prevent and reduce the water hammer water hammer of the pipeline when the pump is turned on and off, prevent the water from flowing back to protect the water pump, and maintain the pipeline safety.
Main parts and materials
| Body,Disc,Seat | Ductile Iron |
| O-ring | NBR |
| Diaphragm | NBR+Reinforced nylon mesh |
| Stem | 2Cr13 |
| Bolt | 304/25 |
Function
| Type | JD745X-16Q |
| Pressure | 1.6 mpa |
| Shell test (mpa) | 2.4 mpa |
| Seal test (mpa) | 1.76 mpa |
| Temperature | 0~80℃ |
| Medium | water |
