Forged Brass Magnetic Ball Valve With Lock Thread End Brass Water Valve

Usage:

This series of valves is suitable for working medium for water, non-corrosive liquid, air, saturated vapor etc.

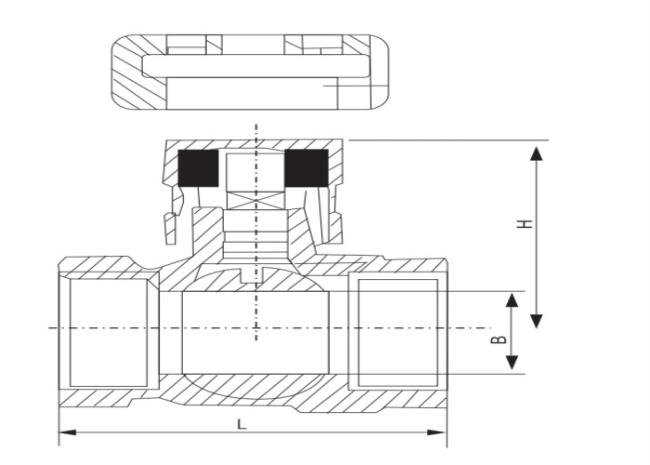

Structure and action principle

It is composed of valve body, ball, valve rod, magnetic lock and other parts. The key rod parallel to the pipeline axis indicates that the valve is in the open position, and perpendicular to the pipeline axis indicates that it is in the closed position. It can be opened and closed by turning the key rod 90 °.

Main part and materials

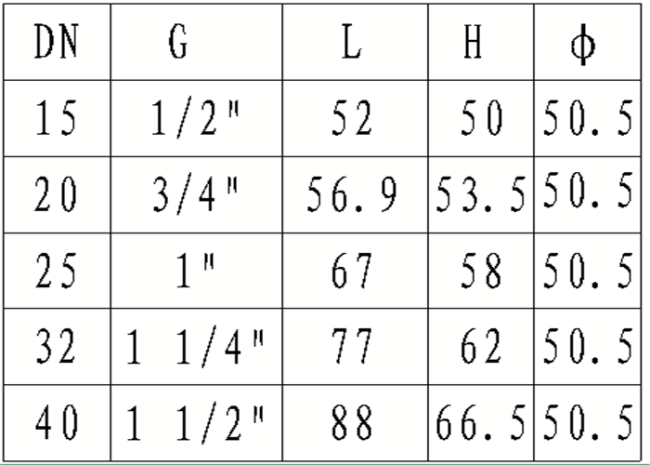

Main performance specifications

Precautions for storage, installation and use

1. The valve is stored in a dry warehouse, and it is strictly forbidden to store it in the open air.
2. Long-term storage should be maintained regularly.
3. This product can be installed in any position of the pipeline and any pipeline, and the working conditions should be consistent with the requirements in the performance specification.
4. A pressure test should be carried out before installation, and installation can only be done if it meets the requirements.
5. Before installation, the inner cavity of the pipe and valve should be cleaned up.
6. After the product is installed, it should not be subjected to large external force.
7. The direction of the handle should be consistent with the direction of the groove of the square head of the valve stem.
