Globe Valve Balance Valve Cast Iron Pressure 1.6 Mpa Flanged Globe Valve

Usage

Balance valve is a valve with special functions and an ideal new energy-saving product. It has good flow characteristics, can reasonably distribute the flow and solve the problem of hydraulic imbalance in the pipe network. It can accurately adjust the pressure drop and flow and improve the flow state of medium in the pipe network, so as to achieve the purpose of medium balance

Structure and action principle

1. The product has an opening indication and opening locking device, and a small pressure measuring valve for flow measurement. Using a special intelligent instrument, input the opening value calculated in the design. When the flow meets the design requirements, it can be locked. It can ensure the constant flow and fully realize the hydraulic and thermal balance of the system.

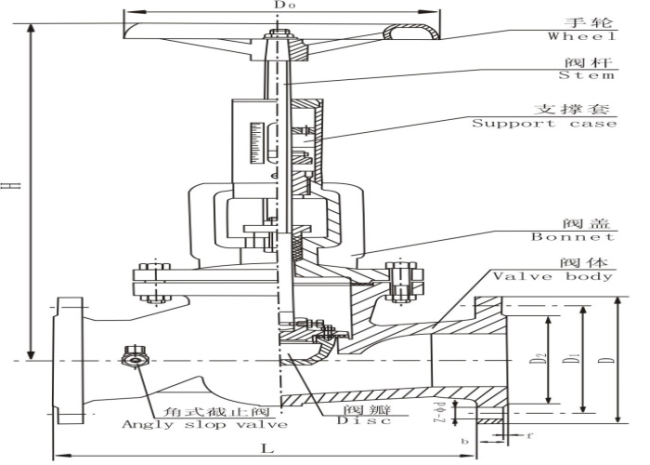

2. The valve is composed of valve body, valve disc, valve cover, valve stem and hand wheel.

3. Rotate the hand wheel and the valve stem to drive the valve disc to rise or fall to realize flow regulation

Dimensions
