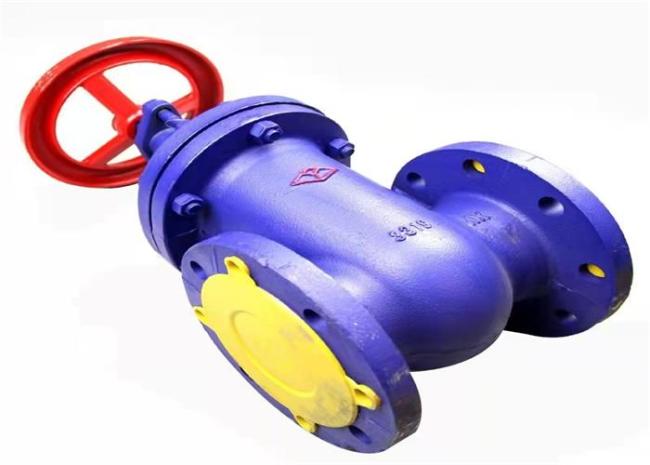

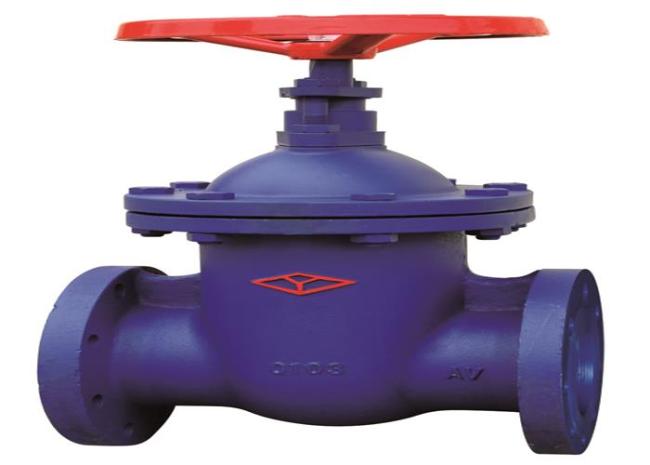

Cast Iron China Standard NON-Rising Stem Metal Seated Flanged Gate Valve

Usage:

The product is used for opening and closing equipment or pipelines; Not allowed for throttling

Valve features

1. simple shape, good manufacturability, wide application range and easy installation.
2. the structure is reasonable and compact, the volume is small, and the closing piece (RAM) adopts wedge structure, which can automatically compensate the deformation of the valve body caused by abnormal load or temperature during operation, and the sealing is safe and reliable.
3. the medium can flow in any direction from both sides of the gate valve to achieve the purpose of connection or disconnection.

Structure and principle of action

1. the valve is flange connected and complies with gb/t 12232 standard. The valve is mainly composed of valve body, gate, valve rod, valve cover, valve rod nut, hand wheel and other parts.
2. the valve rotates the valve stem nut by rotating the hand wheel to make the valve stem move up and down, so as to drive the ram to rise or fall, and make a linear displacement perpendicular to the fluid to achieve the purpose of opening and closing.

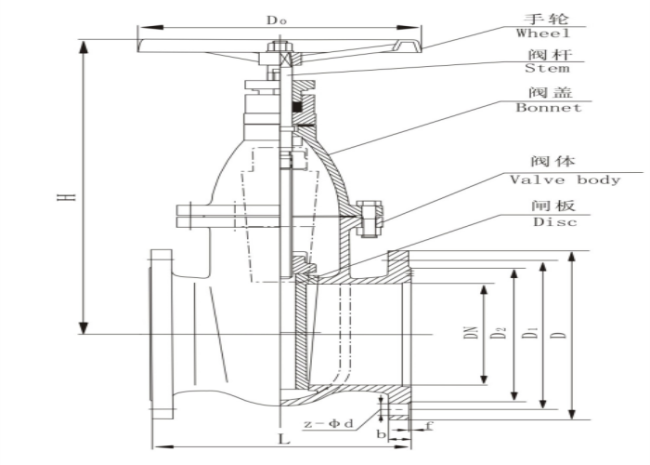

Outline and connect
