China Carbon Steel Material Dn300 Rising Stem Globe Valve Api Standard 150lb for sale

Carbon Steel Material Dn300 Rising Stem Globe Valve Api Standard 150lb

Price Negotiable

Price: Negotiable

MOQ: 10 pcs

Delivery Time: 5-8 work days

Brand: Y

Product Description

Carbon Steel Material Rising Stem API Standard 150LB Flanged Globe Valve

Usage:

This valve is mainly used to connect or cut off the medium in the pipeline. Generally, there is no need to adjust the flow.

Structure and action principle

1. This valve is flange connected and complies with ANSI B16.5 standard

2. This valve is composed of valve body, bonnet, disc, stem, stem nut, handwheel and other parts. By rotating the handwheel, the stem rotates, and the stem drives the disc up or down to achieve the purpose of opening and closing

Material of main parts

Name	Material
Body Bonnet	ASTM A216 WCB
Disc	ASTM A105
Stem	ASTM A276 420
Nut	ASTM B148 C95200

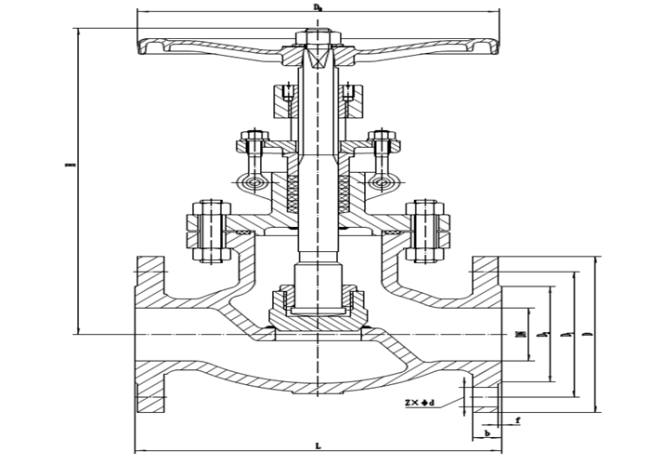

Connection size

Type		DN	L	D	D1	D2	b-f	Z-Φd	H1	H2	D0
J41H-150LB	1 1/4	32	140	115	88.9	63.5	16-1.6	4-Ф16	232	256	140
	1 1/2	40	165	125	98.4	73	16-1.6	4-Ф16	260	288	160
	2	51	203	150	120.7	92	19.5-1.6	4-Ф19	294	327	200
	2 1/2	64	216	180	139.7	105	22.5-1.6	4-Ф19	326	366	240
	3	76	241	190	152.4	127	24-1.6	4-Ф19	365	418	240
	4	102	292	230	190.5	157	23.9-1.6	8-Ф19	396	446	280
	5	125	356	255	215.9	186	23.9-1.6	8-Ф22	450	516	360
	6	152	406	280	241.5	216	26-1.6	8-Ф22	505	590	400
	8	203	495	345	298.5	270	29-1.6	8-Ф22	601	702	450
J41H-300LB	2	51	267	165	127	92	23-1.6	8-Ф19	328	362	240
	2 1/2	64	292	190	149.2	105	25.5-1.6	8-Ф22	387	432	280
	3	76	318	210	168.3	127	30.2-1.6	8-Ф22	416	457	280
	4	102	356	255	200	157	32-1.6	8-Ф23	452	504	320
	5	125	400	280	235	186	35-1.6	8-Ф23	509	580	360
	6	152	444	320	269.9	216	36.6-1.6	12-Ф23	580	671	400
