10k Flanged Globe Valve Korean Standard Cast Steel High Temperature Steam Medium
Price:
Negotiable
MOQ:
10 pcs
Delivery Time:
5-8 work days
Brand:
Y
Product Description

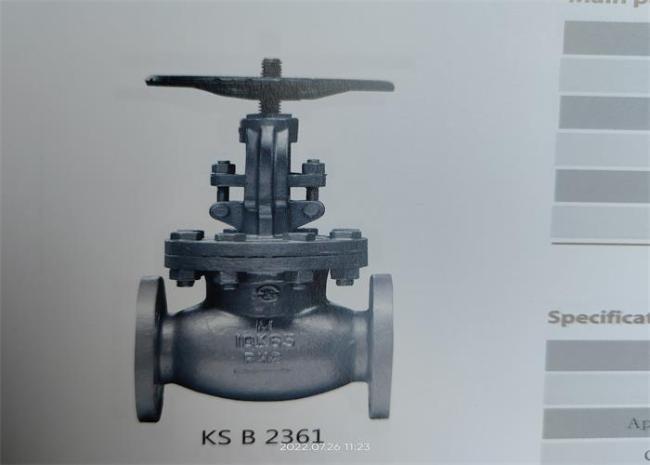

Korean Standard Cast Steel Globe Valve, High Temperature, Steam Medium
Usage
This valve is mainly used to connect or cut off the medium in the pipeline. Generally, there is no need to adjust the flow
Valve features
1. The structure is reasonable and compact, and the volume is small. The valve body is barrel shaped or streamlined, and the shape is beautiful.
2. The opening and closing torque is small, and the seal is safe and reliable
Main performance specifications
| Type |
Pressure |
Test Pressure | Suitable Temperature℃ | Suitable Medium | |
|
Strength (water) MPa |
Enclose(water) MPa |
||||
|
J41H-10K
|
10K | 2.1 | 1.6 | -10~120℃ | Water,Vapour |
Connection size
| Type | DN | L | D | D1 | D2 | b-f | Z-Φd | H1 | H2 | D0 |
|
J41H-10K |
50 | 203 | 155 | 120 | 96 | 16-2 | 4-Φ19 | 289.5 | 315 | 200 |
| 65 | 216 | 175 | 140 | 116 | 18-2 | 4-Φ19 | 294.5 | 326.5 | 200 | |
| 80 | 241 | 185 | 150 | 126 | 18-2 | 8-Φ19 | 322.5 | 355 | 240 | |
| 100 | 292 | 210 | 175 | 151 | 18-2 | 8-Φ19 | 345.5 | 380 | 280 | |
| 125 | 356 | 250 | 210 | 182 | 20-2 | 8-Φ23 | 414 | 460 | 280 | |
| 150 | 406 | 280 | 240 | 212 | 22-2 | 8-Φ23 | 443 | 495 | 360 | |
| 200 | 495 | 330 | 290 | 262 | 22-2 | 12-Φ23 | 530 | 602 | 450 |
Material of main parts
| Part Name | Material |
| Body Bonnet |
WCB |
| Stem |
25 |
| Stem nut |
2Cr13 |
| Disc |
ZCuAl10Fe3 |
