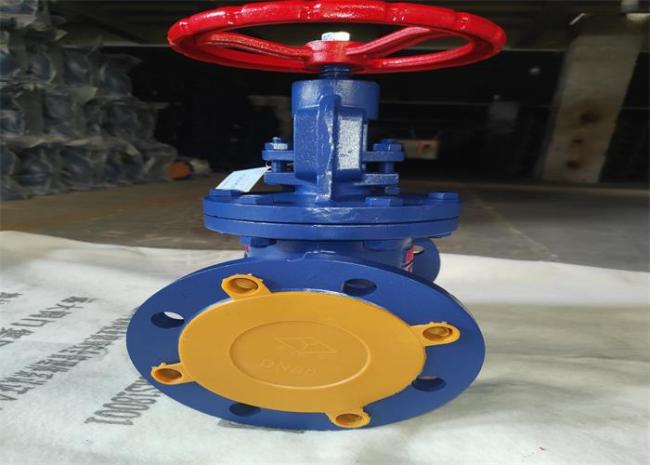

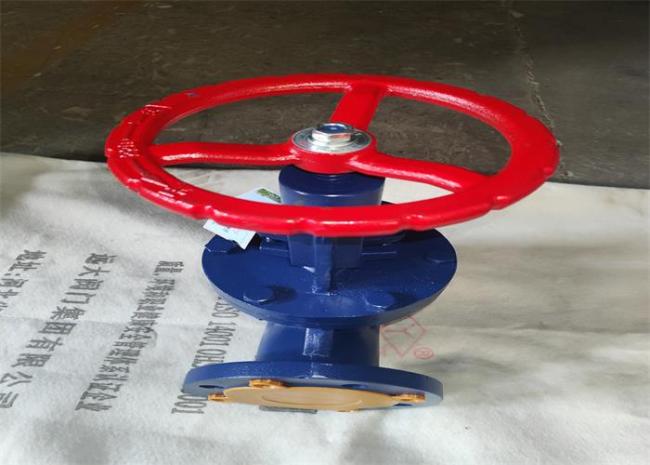

GB Standard Cast Iron Globe Valve With Flange, 1.6 Mpa Pressure Water Medium

Structure and action principle

1. J41t/w/h/f/x-16 is a flange connected stop valve complying with gb/t12233 standard;

2. The valve is composed of valve body, disc, bonnet, valve rod and handwheel.

Turn the hand wheel to make the valve stem rotate, so as to drive the valve disc to rise or fall to achieve the purpose of opening and closing

Valve features

1. The structure is reasonable and compact, and the volume is small. The valve body is barrel shaped or streamlined, and the shape is beautiful.

2. The opening and closing torque is small, and the seal is safe and reliable.

3. The valve seat can be a replaceable valve seat, which can be matched with the sealing surface material of the closing part in any combination to meet the requirements of working conditions.

Connection size

Main Part material
