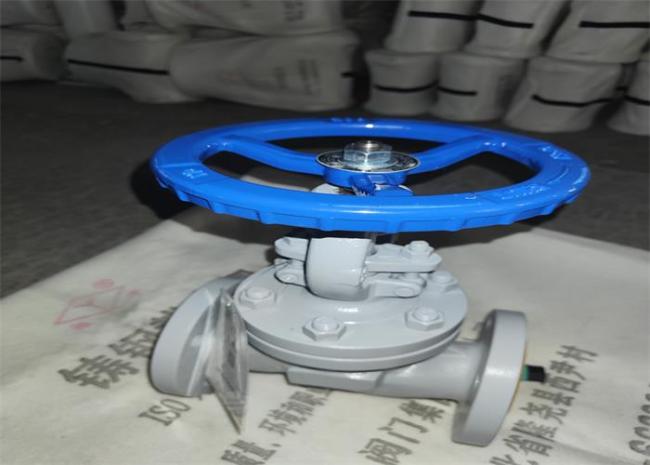

Carbon Steel Flange End Globe Valve, ≤425℃ Temperature And Steam Medium

Valve features

1. The structure is reasonable and compact, and the volume is small. The valve body is barrel shaped or streamlined, and the shape is beautiful.

2. The opening and closing torque is small, and the seal is safe and reliable.

3. The valve seat can be a replaceable valve seat, which can be matched with the sealing surface material of the closing part in any combination to meet the requirements of working conditions.

Adopted standards

·Design and manufacture: steel stop valves and lift check valves for petroleum, petrochemical and related industries (gb/t 12235)

·Structure length: GB/T 12221 metal valve structure length

·Connecting end: GB/T9113.1/ GB/T9113.2 integral steel pipe flange

·Inspection and test: Inspection and test of JB/T9092 valve

technical parameter

Stainless steel sealing surface: applicable temperature -29 ~ 425 ℃, applicable medium: water, steam, oil;

Tetrafluoro sealing surface: applicable temperature -29 ~ 150 ℃, applicable medium: water, steam, oil;

Cemented carbide sealing surface: applicable temperature -29 ~ 425 ℃, applicable medium: water, steam, oil

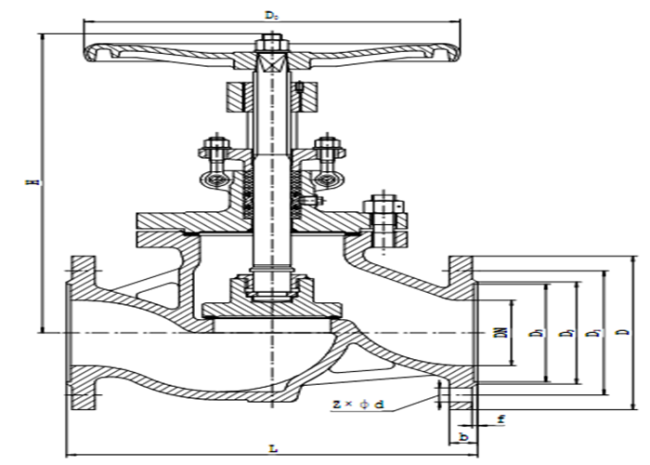

Connection size
