PN16 DN100 With Pin Cast Iron Material,EMDP Seat Wafer Butterfly Valve

Usage:


This valve is widely used in water supply and drainage, building fire and other systems on all kinds of pipelines, especially in the fire pipeline. This valve can be used in the pipeline or equipment of non-corrosive media, as the interception, connection and regulation of flow.


Connection size

Technical parameters

Action principle

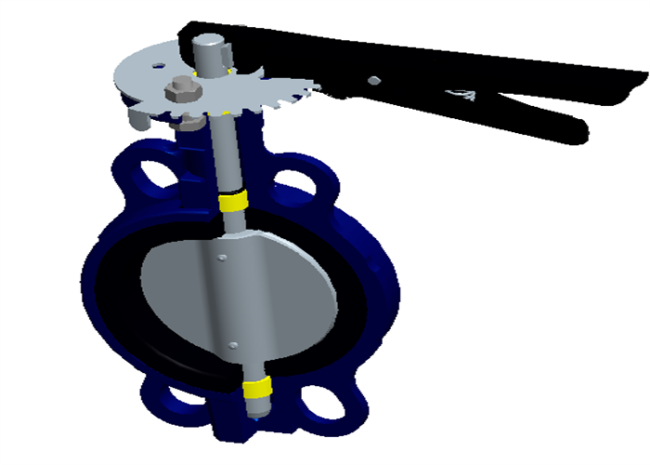

1. The valve is a clip connection, the valve is composed of valve body, disc plate, valve shaft, handle and other parts.
2. The valve turns the handle 90°, the valve shaft also turns, the valve shaft drives the butterfly plate to turn to open or close, the dial and the handle to adjust the flow.


The valve features


1. Structure size conforms to GB/T12221, small size, light weight, easy to operate.
2. The structure adopts half shaft structure, 90 degree operation and quick opening; The plate has high strength, large flow area, small flow resistance and energy saving.
3. The medium can flow from both sides of the flange disc valve in any direction, which can achieve the purpose of connecting or cutting off.
4. The operation torque is small, labor saving and lightweight.
5. The number of opening and closing experiments is more than ten thousand times, with a long life.
5. Complete sealing is achieved, and the gas leakage is zero.
