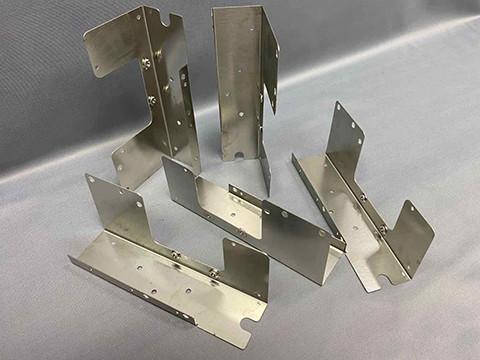

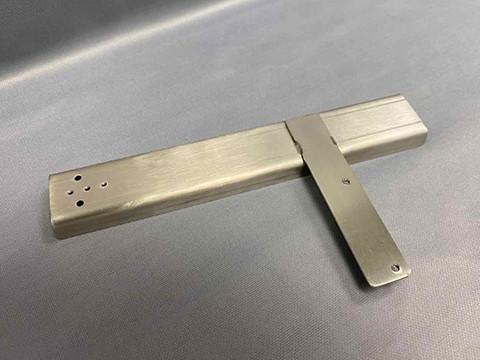

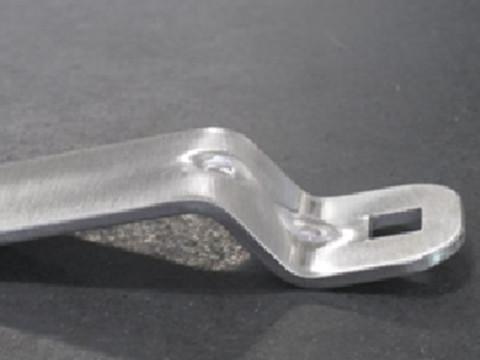

SS316l Medical Sheet Metal Fabrication
304 316l Stainless Steel Metal Product Medical Sheet Metal Fabrication
The process of sheet metal fabrication has progressed and developed over time due to the high demand and broadening uses across multiple industries. Now, there are many ways to fabricate sheet metal. With so many different processes, sheet metal fabrication has really become a form of art. Some of the processes are as follows and the links below are the services we provide:
• Shear
• Bend
• Coin
• Laser cut
• Punch
• Forming

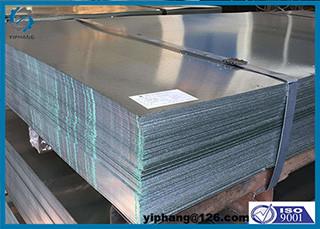

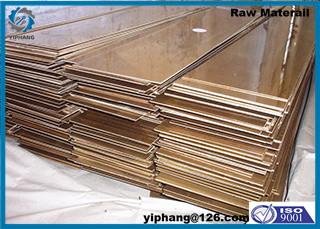

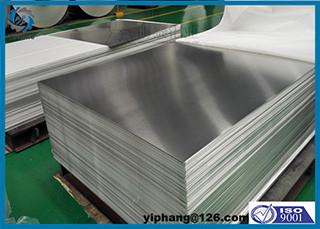

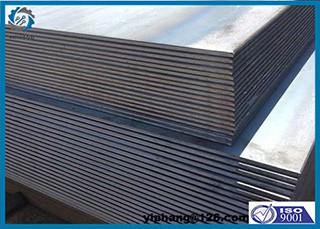

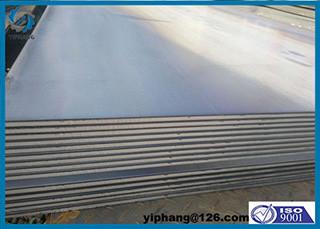

Material Info and Types
|
SPCC THICKNESS 0.3-3.0mm |
Q235 THICKNESS 1-40mm |
Q345 THICKNESS 1-40mm |
|
GALVANIZED PLATE THICKNESS 0.3-3.0mm |
SUS304 THICKNESS 0.1-20.0mm |
SUS316 THICKNESS 0.3-20.0mm |
|
ALUMINIUM PLATE THICKNESS 0.3-20.0mm |
COPPER THICKNESS 0.3-20.0mm |
BRASS THICKNESS 0.3-20.0mm |
Sheet Metal Thicknesses
| Steel / Stainless Steel | Aluminum | ||
| Gauge | Thickness | Gauge* | Thickness |
| 28 26 24 22 20 18 16 14 12 11 10 8 7 |
0.015” 0.018” 0.024” 0.030” 0.036” 0.048” 0.060” 0.075” 0.105 0.120” 0.134” 0.160” 0.1874” |
22 20 18 16 14 12 11 10 |
0.025” 0.032” 0.040” 0.050” 0.063” 0.080” 0.090” 0.100” 0.125” 0.160” 0.190” |
| 3/16” and thicker is plate |
THERE IS NO OFFICIAL GAUGE STANDARD FOR ALUMINUM 0.250” and thicker is plate *American Wire Gauge |
||

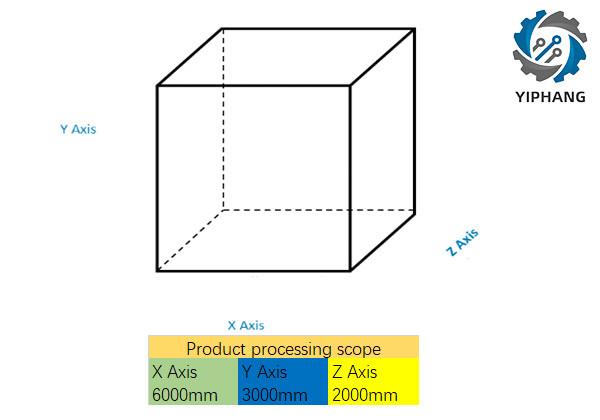

Our Product Processing scope

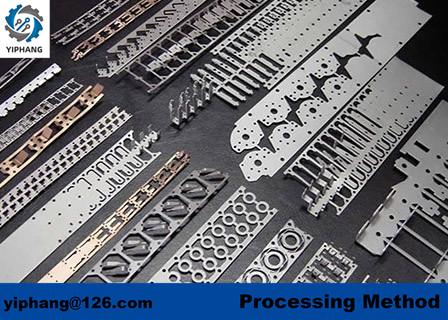

Our Sheet Metal Processing Method
|

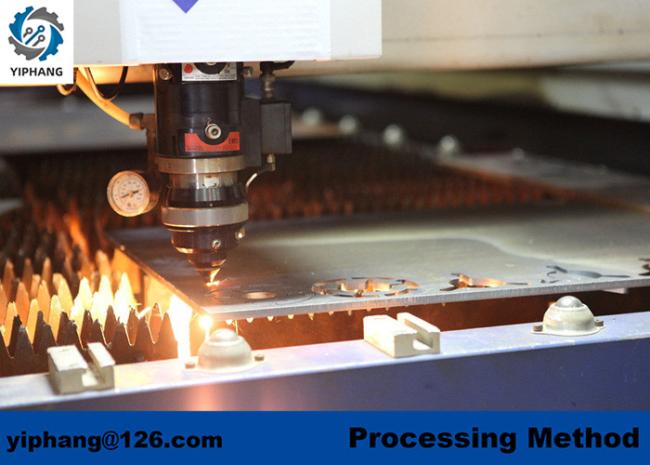

Laser cut Thickness 0.3-40mm |
Laser cutting tubes Thickness 0.2-10mm |
Punching Thickness 0.5-5mm |
|
Stamping Thickness 0.3-5mm |
Bending Thickness 1-16mm |

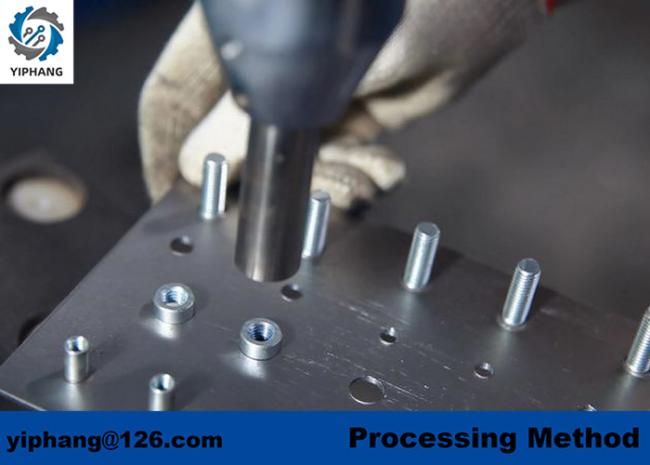

Pressing,Pulling rivet |
|

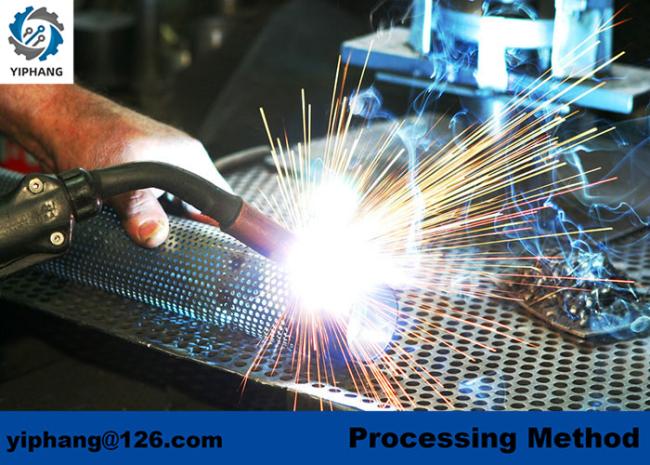

Welding |
Assembly |

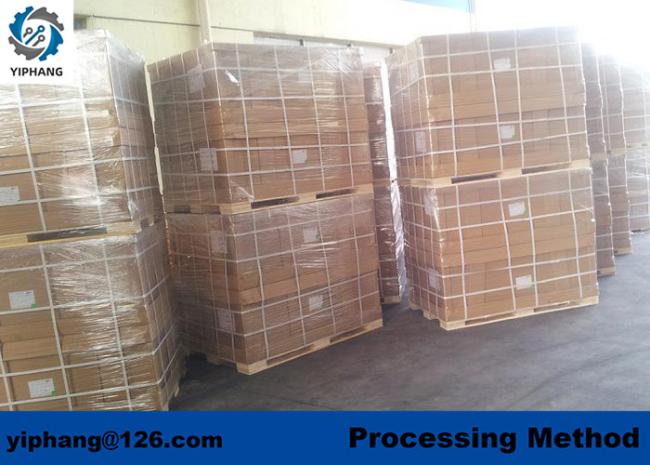

Package |
Our Surface Treatment
Metal Fabrication Capabilities
Here at Yiphang, we have a wide range of capabilities to meet our customers’ metal fabrication needs. We specialize in precision sheet metal, CNC machining, and welding fabrication.
| Machine Brand and Type | Highlights | Picture |
HSG TP65s II Professional Bevel Tube Laser Cutting Machine |
Quantity: 1 Maximum tube length: 236.2” Watt: 3000W |
 |
| HSG G4020T Pro-6000W Plate Laser Cutting Machine | Quantity: 1 Number of Axes : 3 X,Y,X Axis Travel: 6.56’,13.12’,4” Watt: 6000W |
 |
| HSG G3015C III-3000W Plate Laser Cutting Machine | Quantity: 1 Number of Axes : 3 X,Y,X Axis Travel: 4.92’,9.84’,4” Watt: 3000W |
 |

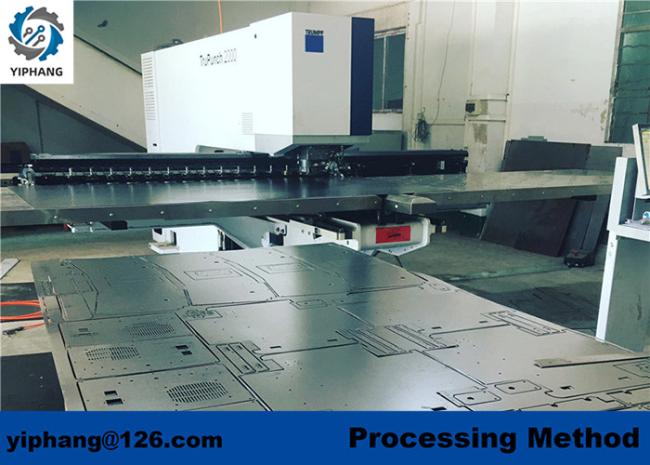

| Amada PEGA King 345 CNC Turret Punch | Quantity: 1 Maximum Tonnage: 30 ton Tool Stations: 44 RPM: 30 |
 |
| Yawei Hydraulic Brake PBH60 | Quantity: 2 Length:5.24’ Maximum Tonnage: 60 ton |
 |
| Yawei Hydraulic Brake PBH220 | Quantity: 1 Length:13.12’ Maximum Tonnage: 220 ton |
 |
| Yangli Punching Machine | Quantity: 2 Maximum Tonnage:150 ton |
 |
| Yangli Punching Machine | Quantity: 4 Maximum Tonnage: 60 ton |
 |
| Riland 400GT WS/TIG Welder | Quantity: 4 Amp: 400 |
 |
| Lincoln Optimarc CV/CC 500 MIG Welder | Quantity: 1 Amp: 500 |
 |
| Lincoln Optimarc CC 400 MIG Welde | Quantity: 3 Amp: 500 |
 |
| Spot Welder with Solid State Control | Quantity: 2 kVA: 20 |
 |
| YASKAWA Two Up20-6 robots welder | Quantity: 1 Number of Axes : 6 |
 |
| Yipeng Pressure Riveting Machine | Quantity: 2 Maximum Tonnage: 7 ton |
 |
| Tailift Radial drilling machine | Quantity: 1 Processing dimension: ￠0.12”-2.36” |
 |
| Westlake Drilling machine | Quantity: 3 Processing dimension: ￠0.04”-0.55” |
 |
| Westlake Tapping machine | Quantity: 2 Processing dimension: M2-M12 |
 |
Our Inspection
