SPCC Welding Medical Sheet Metal Fabrication Cnc Precision Components

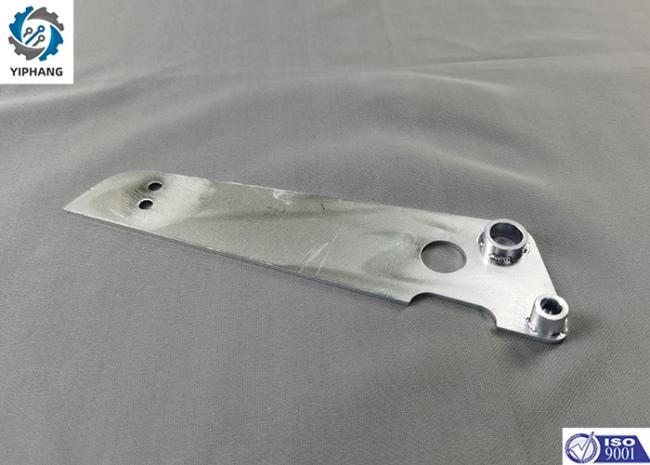

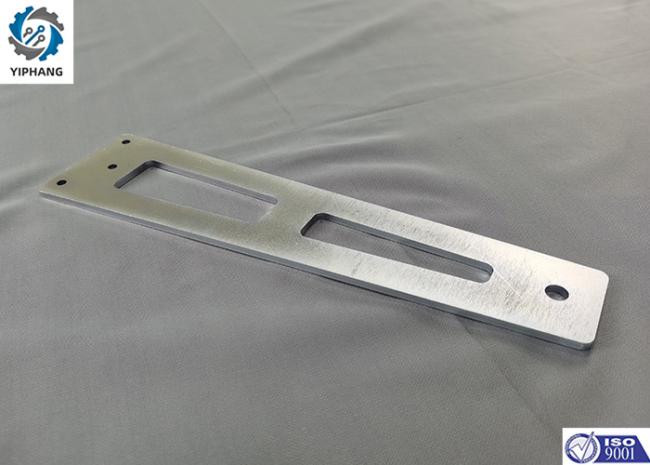

Galvanized Plate Welding CNC Component Medical Sheet Metal Fabrication
he process of sheet metal fabrication has progressed and developed over time due to the high demand and broadening uses across multiple industries. Now, there are many ways to fabricate sheet metal. With so many different processes, sheet metal fabrication has really become a form of art. Some of the processes are as follows we provide:
• Shear
• Bend
• Coin
• Laser cut
• Punch
• Forming
Why should you choose us?
1. We are ODM&OEM, design according to your drawing.
2. Rich experience and good technology support (with senior and professional engineers with more than 7 years experience).
3. We are factory, not trading company, so we can provide first-hand factory price.
4. Small/Low MOQ (1 sample) is accepted.
5. 100% inspection before delivery.
6. Competitive price with high quality.
7. Convenient transportation (port: Shenzhen).
| Business Type | Factory / Manufacturer |
| Service | Sheet metal fabrication service |
| Turning and milling | |
| Turning and milling | |
| CNC Turning | |
| OEM Parts | |

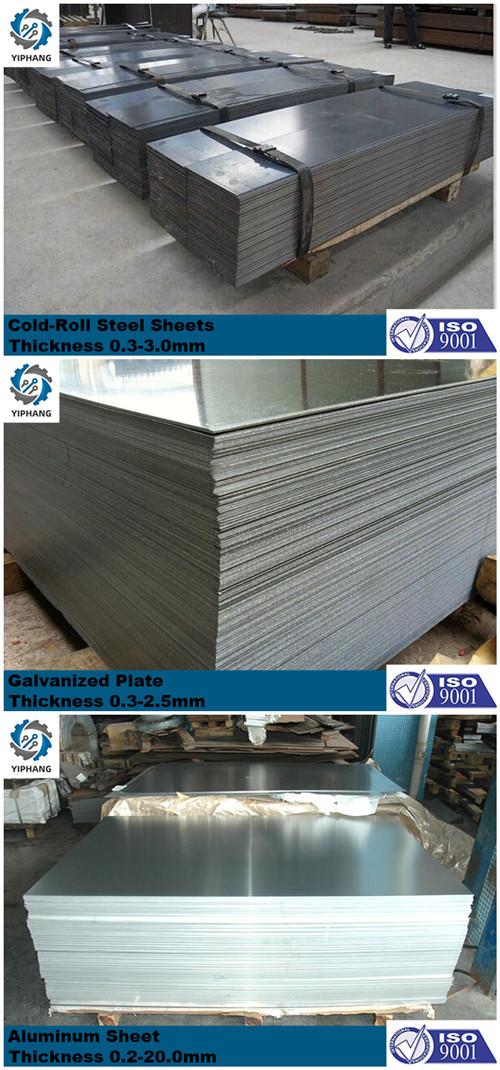

| Material | 1). Steel: SPCC 4140, Q235, Q345B,20#,45# etc. |
| 2). Stainless steel: 303,304,316L, 17-4(SUS630) etc. | |
| 3). Aluminum: AL 6061-T6, 6063, 7075-T etc. | |
| 4). Titanium: TA1, TA2/GR2, TA4/GR5, TC4, TC18 etc. | |
| 5). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90) etc | |
| 6). Copper, bronze, Magnesium alloy, Delrin, POM, Acrylic, PC, etc. | |
| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, |
| Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, | |
| Electroplating Chromium, Electrophoresis, QPQ(Quench-Polish-Quench) | |
| Electro Polishing, Chrome Plating, Knurl, Laser Engraving Logo, etc. | |
| Main Equipment | Laser Plate Cutting Machine, Laser Tube Cutting Machine, CNC Bending, Argon Arc Welding Machine |
| CNC Machining center (Milling), CNC Lathe,etc. | |
| Drawing format | STEP, STP, GIS, CAD, PDF, DWG, DXF etc. or samples. |
| Tolerance | +/-0.1mm ~ +/-0.05mm |
| Surface roughness | Ra 0.1~3.2 |
|
Inspection |
Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier, CMM |
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge | |
| Capacity | Laser Plate Cutting work range: 2000*4000mm |
| Laser Tube Cutting work range: φ10mm-φ300mm*6000mm | |
| CNC turning work range: φ0.5mm-φ150mm*300mm | |
| CNC milling work range: 510mm*1020mm*500mm |
Here at Yiphang, we have a wide range of capabilities to meet our customers’ metal fabrication needs. We specialize in precision sheet metal, CNC machining, and welding fabrication.
| Machine Brand and Type | Highlights | Picture |
HSG TP65s II Professional Bevel Tube Laser Cutting Machine |
Quantity: 1 Maximum tube length: 236.2” Watt: 3000W |
 |
| HSG G4020T Pro-6000W Plate Laser Cutting Machine | Quantity: 1 Number of Axes : 3 X,Y,X Axis Travel: 6.56’,13.12’,4” Watt: 6000W |
 |
| HSG G3015C III-3000W Plate Laser Cutting Machine | Quantity: 1 Number of Axes : 3 X,Y,X Axis Travel: 4.92’,9.84’,4” Watt: 3000W |
 |
| Amada PEGA King 345 CNC Turret Punch | Quantity: 1 Maximum Tonnage: 30 ton Tool Stations: 44 RPM: 30 |
 |
| Yawei Hydraulic Brake PBH60 | Quantity: 2 Length:5.24’ Maximum Tonnage: 60 ton |
 |
| Yawei Hydraulic Brake PBH220 | Quantity: 1 Length:13.12’ Maximum Tonnage: 220 ton |
 |
| Yangli Punching Machine | Quantity: 2 Maximum Tonnage:150 ton |
 |
| Yangli Punching Machine | Quantity: 4 Maximum Tonnage: 60 ton |
 |
| Riland 400GT WS/TIG Welder | Quantity: 4 Amp: 400 |
 |
| Lincoln Optimarc CV/CC 500 MIG Welder | Quantity: 1 Amp: 500 |
 |
| Lincoln Optimarc CC 400 MIG Welde | Quantity: 3 Amp: 500 |
 |
| Spot Welder with Solid State Control | Quantity: 2 kVA: 20 |
 |
| YASKAWA Two Up20-6 robots welder | Quantity: 1 Number of Axes : 6 |
 |
| Yipeng Pressure Riveting Machine | Quantity: 2 Maximum Tonnage: 7 ton |
 |
| Tailift Radial drilling machine | Quantity: 1 Processing dimension: ￠0.12”-2.36” |
 |
| Westlake Drilling machine | Quantity: 3 Processing dimension: ￠0.04”-0.55” |
 |
| Westlake Tapping machine | Quantity: 2 Processing dimension: M2-M12 |
 |
Are you a manufacturer or trader?
We are a 10 years experience factory. We try our best to provide competitive price and
professional service.
Can you customize my products?
We can customize kinds of machinery parts according to your idea or requirement.
What kind of welding services do you offer?
Yiphang Hardware offers certified welding services including MIG and TIG welding, as well as Spot welding and Stud welding services. Yiphang Hardware has experience in welding a variety of metals such as Alloy, Stainless Steel, Aluminum, Chromium Molybdenum Steel (Chrome Molly), Cold Rolled Steel, High Carbon Steel, Hot Rolled Steel, Copper, Titanium, and Brass.
Does Yiphang Hardware provide design and engineering?
Yiphang Hardware specializes in design and engineering. We can work with you from start to finish on any product you are creating.
What is your MOQ?
Do not have MOQ limited, trial order before mass production is welcomed.
What about quality control?
Self-inspection in every process by the production operator. Spot inspection and final inspection
executed by QC, Defective rate be controlled within 1% even lower.
