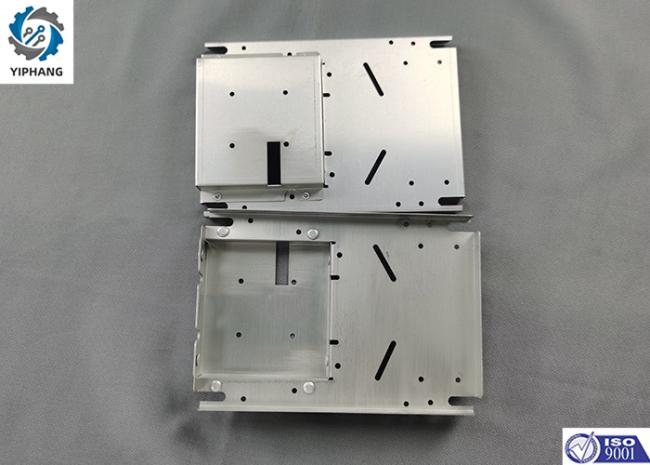

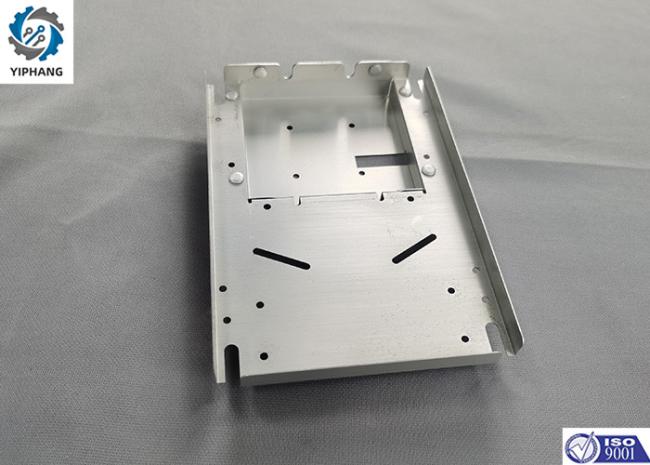

Al6061 Al5052 Al5754 Sheet Metal Brackets
Aluminum Al6061,Al5052,Al5754 Thickness 0.5mm Sensor Holder Sensor Cover Sheet Metal Brackets
Sheet Metal Fabrication Services
The process of sheet metal fabrication has progressed and developed over time due to the high demand and broadening uses across multiple industries. Now, there are many ways to fabricate sheet metal. With so many different processes, sheet metal fabrication has really become a form of art. Some of the processes are as follows we provide:
• Shear
• Bend
• Coin
• Laser cut
• Punch
• Forming
| Business Type | Factory / Manufacturer |
| Service | Sheet metal fabrication service |
| Turning and milling | |
| Turning and milling | |
| CNC Turning | |
| OEM Parts | |

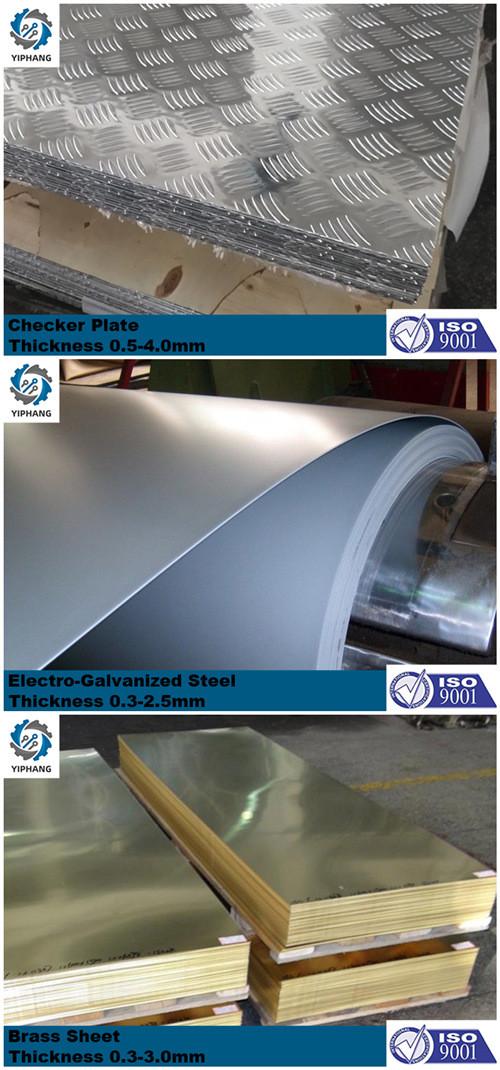

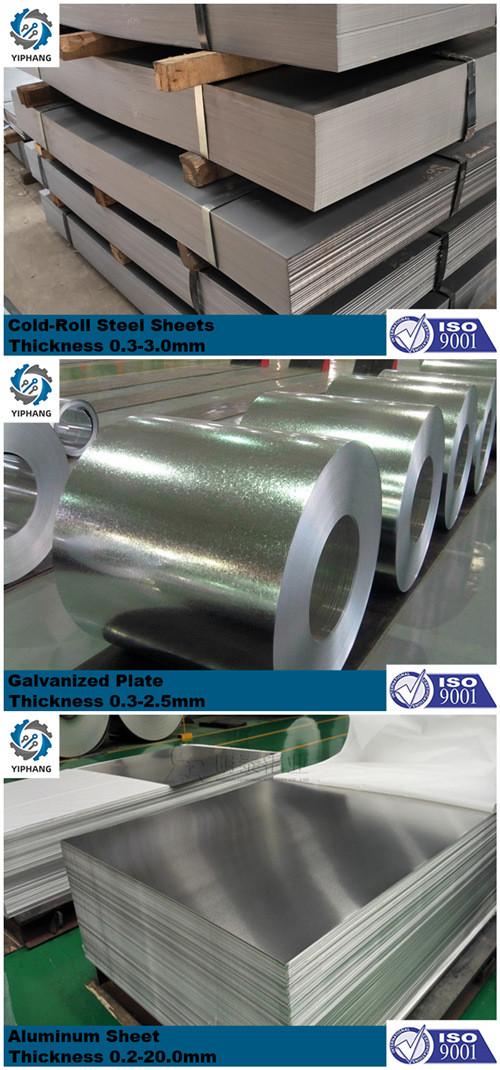

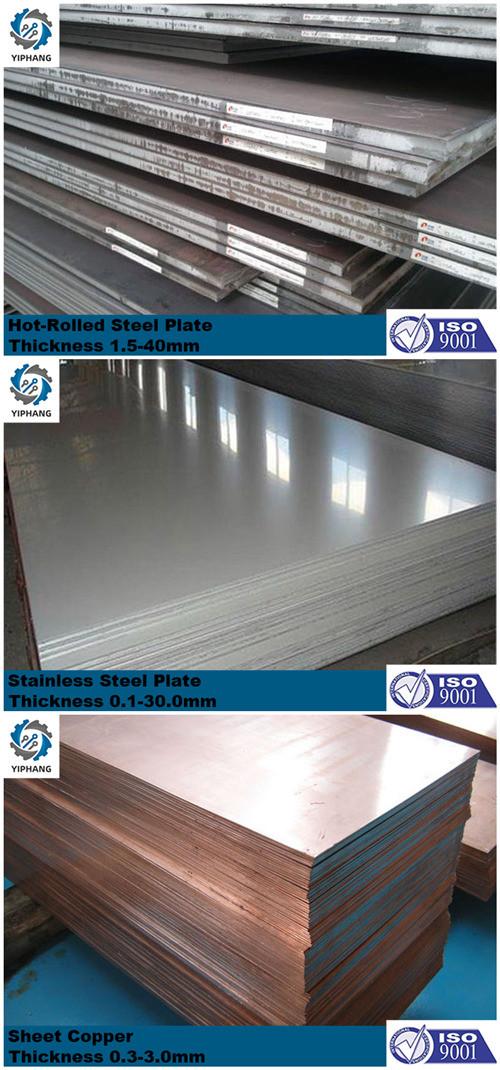

| Material | 1).Steel: Carbon steel/ Electro-Galvanized Steel/ Galvanized Plate/ Checker Plate,Hot-Rolled Steel, A572 Grade 50 |
| 2). Stainless Steel: SS201, SS303, SS304, SS316 etc. Checker Plate | |
| 3). Aluminum: AL5052, AL6061, AL6063, AL7075 etc. | |
| 4). Titanium: TA1, TA2/GR2, TA4/GR5, TC4, TC18 etc. | |
| 5). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90) etc | |
| 6). Copper, bronze, Magnesium alloy, Delrin, POM, Acrylic, PC, etc. | |

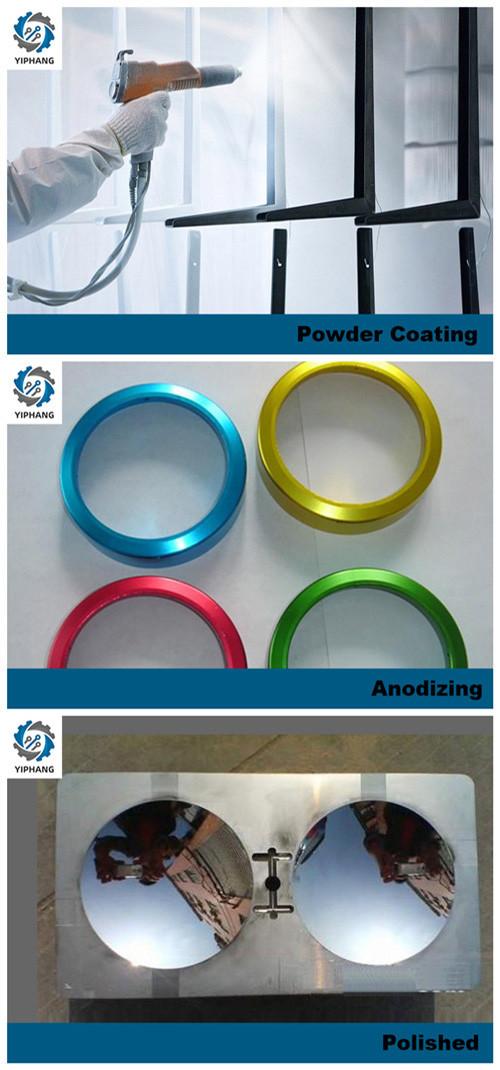

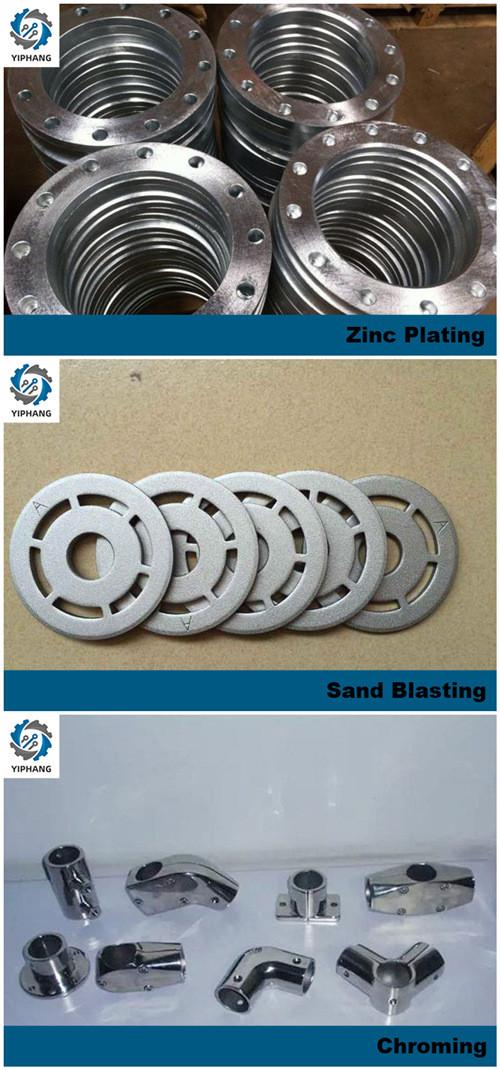

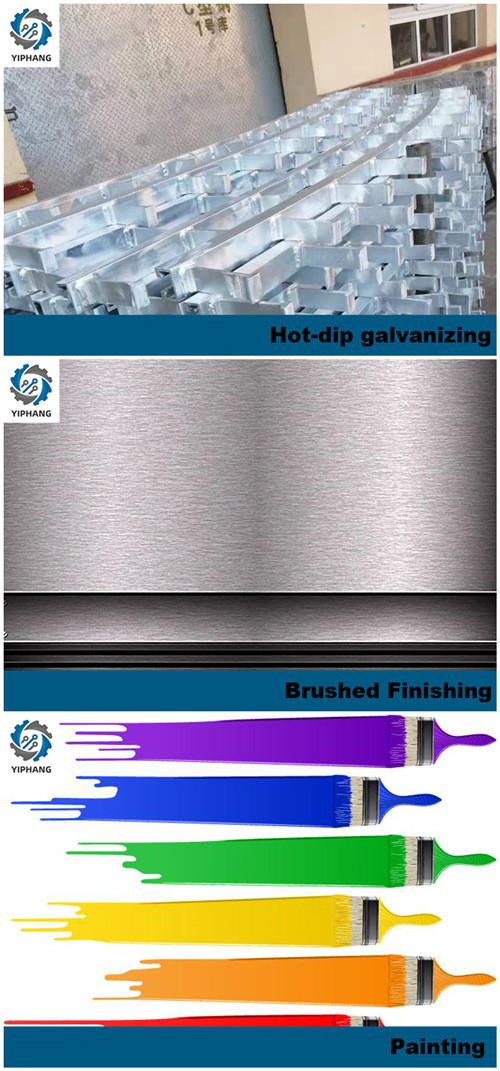

| Finish | Sandblasting, Anodize color, Blackenning, Zinc/Nickl Plating, Polish, |
| Power coating, Passivation PVD, Brushing, Polishing, Anodizing, Electric-plating, Painting | |
| Electroplating Chromium, Electrophoresis, QPQ(Quench-Polish-Quench) | |
| Blue and black, phosphating, pickling, electroless plating of various metals and alloys, TD treatment, QPQ treatment, chemical, etc | |
| Main Equipment | Laser Plate Cutting Machine, Laser Tube Cutting Machine, CNC Bending, Argon Arc Welding Machine |
| CNC Machining center (Milling), CNC Lathe, Grinding machine, etc. | |
| Drawing format | STEP, STP, GIS, CAD, PDF, DWG, DXF etc. or samples. |
| Tolerance | +/-0.1mm ~ +/-0.05mm |
| Surface roughness | Ra 0.1~3.2 |
|
Inspection |
Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier, CMM |
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge | |
| Capacity | Laser Plate Cutting work range: 2000*4000mm |
| Laser Tube Cutting work range: φ10mm-φ300mm*6000mm | |
| CNC turning work range: φ0.5mm-φ150mm*300mm | |
| CNC milling work range: 510mm*1020mm*500mm |
Here at Yiphang, we have a wide range of capabilities to meet our customers’ metal fabrication needs. We specialize in precision sheet metal, CNC machining, and welding fabrication.
| Machine Brand and Type | Highlights | Picture |
HSG TP65s II Professional Bevel Tube Laser Cutting Machine |
Quantity: 1 Maximum tube length: 236.2” Watt: 3000W |
 |
| HSG G4020T Pro-6000W Plate Laser Cutting Machine | Quantity: 1 Number of Axes : 3 X,Y,X Axis Travel: 6.56’,13.12’,4” Watt: 6000W |
 |
| HSG G3015C III-3000W Plate Laser Cutting Machine | Quantity: 1 Number of Axes : 3 X,Y,X Axis Travel: 4.92’,9.84’,4” Watt: 3000W |
 |
| Amada PEGA King 345 CNC Turret Punch | Quantity: 1 Maximum Tonnage: 30 ton Tool Stations: 44 RPM: 30 |
 |
| Yawei Hydraulic Brake PBH60 | Quantity: 2 Length:5.24’ Maximum Tonnage: 60 ton |
 |
| Yawei Hydraulic Brake PBH220 | Quantity: 1 Length:13.13’ Maximum Tonnage: 220 ton |
 |
| Yangli Punching Machine | Quantity: 3 Maximum Tonnage:150 ton |
 |
| Yangli Punching Machine | Quantity: 4 Maximum Tonnage: 60 ton |
 |
| Riland 400GT WS/TIG Welder | Quantity: 5 Amp: 400 |
 |
| Lincoln Optimarc CV/CC 500 MIG Welder | Quantity: 1 Amp: 500 |
 |
| Lincoln Optimarc CC 400 MIG Welde | Quantity: 3 Amp: 500 |
 |
| Spot Welder with Solid State Control | Quantity: 2 kVA: 20 |
 |
| YASKAWA Two Up20-6 robots welder | Quantity: 1 Number of Axes : 6 |
 |
| Yipeng Pressure Riveting Machine | Quantity: 2 Maximum Tonnage: 8 ton |
 |
| Tailift Radial drilling machine | Quantity: 1 Processing dimension: ￠0.12”-2.36” |
 |
| Westlake Drilling machine | Quantity: 3 Processing dimension: ￠0.04”-0.55” |
 |
| Westlake Tapping machine | Quantity: 2 Processing dimension: M2-M12 |
 |
Are you a manufacturer or trader?
We are a 10 years experience factory. We try our best to provide competitive price and professional service.
Can I get the samples?
Yes, the sample is free, you only need to bear express shipping freight or we can send sample to you by your collect account.
What are your main products?
We specialize in manufacturing sheet metal parts, welding structural parts ,metal stamping die, metal stamping parts and CNC machining part etc.
What surface treatment do you handle?
Powder coating, zinc plating, polished, paint, anodic oxidation etc.
What’s the delivery time?
In generally, it will take about 20- 25 days to finish one order.
What’s your payment term?
30% down payment, 70% before shipment
