11kw Oil Injected Rotary Atlas Screw Air Compressor Ga+ Ga11+
HIGH RELIABILITY OIL-INJECTED SCREW ATLAS GA+ SERIES AIR COMPRESSOR 11KW GA11+
Industry-leading performers High Reliability And Smart Energy 11KW GA11+
Re-engineered to break records, the industrial GA 11 + -30 compressors have the best air delivery capacity in the industry. These all-in-one solutions provide high-quality air at the lowest possible operating costs and offer extended monitoring possibilities.
Specifications
| COMPRESSOR TYPE |
Pressure variant |
Max. working pressure WorkPlace |
Capacity FAD* | Installed motor power | Noise level** |
Weight WorkPlace |
Weight WorkPlace Full Feature |
|||
| bar(e) | psig | l/s | m³/min | cfm | kW | dB(A) | kg | kg | ||
| GA11 + | 7.5 | 7.5 | 109 | 35.8 | 128.9 | 75.9 | 11 | 63 | 410 | 455 |
| 8.5 | 8.5 | 116 | 33.8 | 121.7 | 71.7 | 11 | 63 | 410 | 455 | |
| 10 | 10 | 145 | 30.3 | 109.1 | 64.2 | 11 | 63 | 410 | 455 | |
| 13 | 10 | 189 | 25.2 | 90.7 | 53.4 | 11 | 63 | 410 | 455 | |
Reliable motor & drive train
• The gearbox’s maintenance-free transmission maximizes durability.
• The motor and drive train are greased for life to avoid improper re-lubrication.
• Free Air Delivery is increased by 6-17% and power consumption is reduced by 3-12% thanks to packaging and new compressor element.
Electrical cubicle
• Reduced cubicle temperature doubles the lifetime of the electrical components.
• Avoid damage with the electrical cubicle’s standard phase sequence relay.
Advanced control

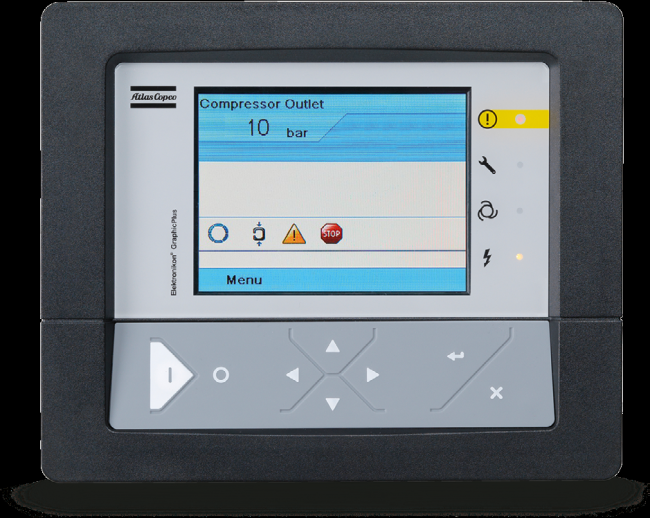

• High-tech Elektronikon ® graphic controller with warning indications, compressor shut-down and maintenance scheduling.
• Optional centralized control over up to 6 compressors via Elektronikon ®.
Quality air solutions

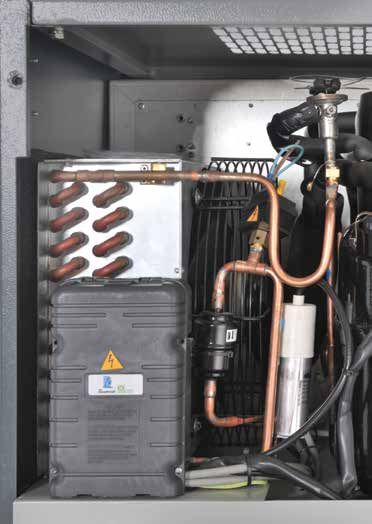

• Integrated dryer range with counterflow heat exchanger, integrated water separator and optional Dryer Saver Cycle.
• The integrated dryer can be outfitted with optional UD + filter, resulting in oil carry- over as low as 0.01 ppm.
• Water separation of nearly 100% in all conditions with the standard electronic no-loss drain and integrated water separator in the aftercooler.
A step ahead in monitoring and controls
The next-generation Elektronikon ® operating system offers a great variety of control and monitoring features that allow you to increase your compressor’s efficiency and reliability. To maximize energy efficiency, the Elektronikon ® controls the main drive motor and regulates system pressure within a predefined and narrow pressure band.
