Waterproof Right Angle Male Header Gold Plated 2..0mm Pitch

• Number of rows: single row, double row, three row, four row at most.

  Pin number: 02 to80

  Stitching: straight foot, bent foot, SMT; The size of the needle.

  Dimensions: overall dimensions length, width, thickness, row spacing.

  Spacing: 0.8, 1.0, 1.27, 2.0, 2.54.

  Material: refers to contact material and surface treatment, insulation material.

  Packing: blister shell, roll bag, bulk.

  Material: Pin material: brass or phosphor bronze; Insulation material: plastic UL94V-0.

  Surface treatment: gold plated 0.8U, tin plating, nickel plating.

  Processing technology: Row needle processing process is mainly: according to the requirements of brass (or phosphor bronze) processing pin,

  And according to the requirements of nickel plating and then gold, and then use a mold to process the insulation part, and finally in special equipment according to the ruler

  The pin is required to be inserted into the insulator.

  Note: there are many factors affecting the price, usually the most influential for gold plating, needle length and so on.

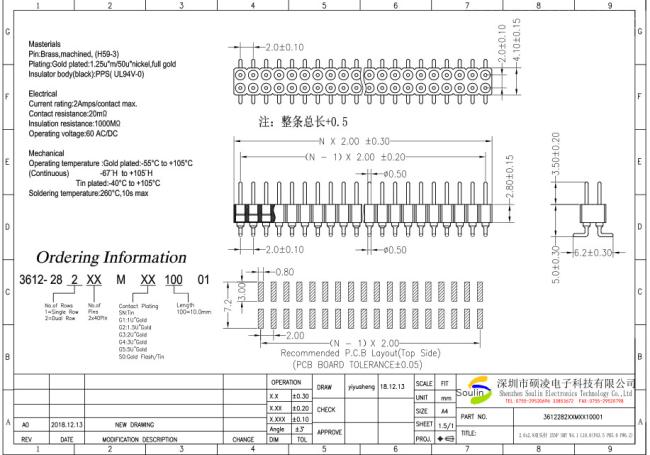

  Example of pin arrangement parameters

  Features: single row and double row, straight needle and bent needle, pin spacing of 2.54mm and 3.96mm, a variety of pin lengths.

• Row needles applied

  ● Data processing ● Computer ● program control equipment ● electronic measurement equipment ● Automatic control ● Automation ● Communication

  The cross section of the rectangular pin is 0.8×1.6mm, and the load current is 7.5a. Jack has at least two independent shrapnel, four contact points, jack structure can prevent misinsertion. 254/I series square pin section is 0.64×0.64mm. The above two pins are designed with blunt edges for high frequency applications. Gold plated pinhole contact parts, corrosion resistance, low contact resistance and high reliability.
