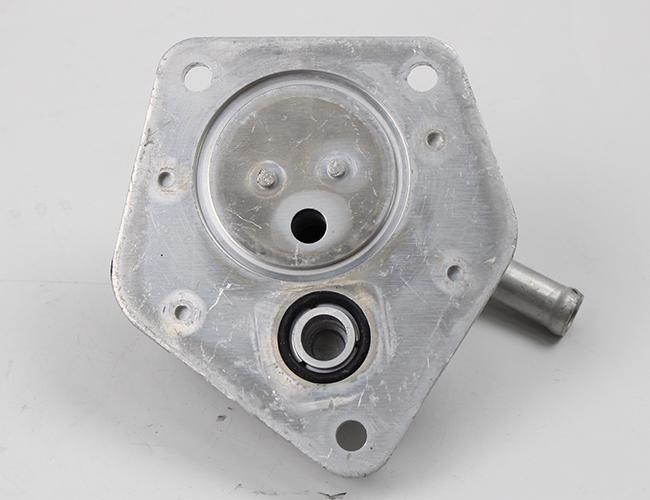

Hrater Honda Heating System Aluminum Warmer Comp 25560 5t0 003

25560 - 5T0 - 003 Honda Heating System HRATER For CITY / FIT / CRIDER

Instructions for use

It is an independent auxiliary heating system on the vehicle. It can be used after the engine is shut down, or auxiliary heating can be provided during driving. A small amount of fuel is extracted from the fuel tank to the combustion chamber of the parking heater, and then the fuel is burned in the combustion chamber to generate heat to heat the engine coolant or air, and then the heat passes through heating. The air radiator is emitted into the cabin, and the engine is also preheated. In this process, it consumes battery power and a certain amount of fuel.

Safe use

1. Centrifugal pump starts the trial operation of pumping and check whether the waterway is normal;

2. After the waterway is normal, the fan motor rotates, blows through the intake pipe, and the quantitative oil pump pumps the oil into the combustion chamber through the input pipe.

3. Spark plug ignite;

4. After the fire ignites at the head of the combustion chamber, it will burn completely at the tail and expel the exhaust gas through the exhaust pipe.

5. The flame sensor can detect whether the ignition is turned on according to the temperature of the exhaust gas. If it is opened, the spark plug will be closed.

6. Water absorbs heat through a heat exchanger and circulates to the engine water tank;

7. The water temperature sensor detects the temperature of the water. If the set temperature is reached, the combustion level will be turned off or lowered:

8. The air controller can control the air intake of burning air to ensure combustion efficiency.

9. Fan motors can control the air intake speed.

1 0. The overheat protection sensor can detect that the heater will auto

Product parameters

Product introduction
