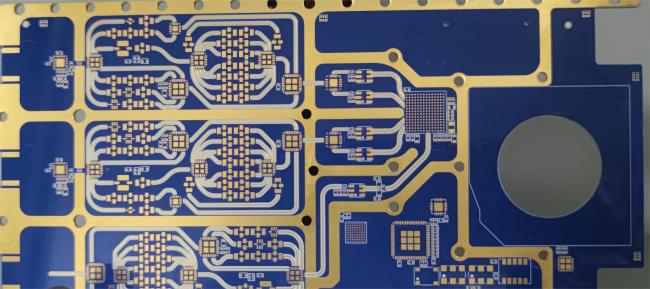

14L HDI PCB Board Immersion Gold 3U Quick Turn PCB Prototypes

14L Quick Turn PCB Immersion Gold 3u Boards HDI PCB Rogers FR4

14 Layer HDI PCB Rogers FR4

Huashengxin Circuit Limited is a professional manufacturer for printed circuit boards and provides flexible quick turn production services (12hours to 72 hours), as well as small volume to big volume PCB manufacturing. The products include 1~32L FR-4 rigid printed circuit board, IMS PCB, HDI Boards, high frequency PTFE boards and Rigid-flex boards etc.

HSX's products are widely used in many high-tech fields such as communications, power supplies, computer networks, digital products, industrial control, science and education, medical devices, and aerospace, and so on.

Max layers: 32layer (if more than 20 layer,  needs to review the capability)

Max finish panel size: 740* 500 MM(if larger than 600 MM, needs to review capability)

Min finish panel size: 5 * 5mm

Raw material: PI +FR4,FR4, Rogers, AI and so on

Printed circuit board's finished board thickness: 0.2~4.0mm( if less than 0.2 mm, or more than 4 mm needs to review) (if board thickness ≤ 0.6mm, can not apply for HASL surface)

Printed circuit board's copper thickness of inner and outer base copper: Min 0.3/0.5oz,Max 3oz, advance 4-6oz

Finished outer copper: 6oz

Bow and twist: 0.075%

Min. hole size: 0.15mm(＜0.15 mm needs to review the capability)

HDI Min drill hole: 0.08-0.10MM

Printed circuit board's track/gap: 3mil(0.075mm)

Printed circuit board's Profile: Routing, Punching, V-CUT

Printed circuit board's solder mask thickness: standard 15-20um; Advanced: 35um

Min solder mask bridge width: green 4mil,other colour 4.8mil

Solder mask plugged holes: 0.1-0.5mm

The color of solder mask: green,matt green,blue,matt blue,black,matt black,yellow,red,white, and so on

PCB silkscreen: White, Black and  so on

Thickness of Peelable mask: 500-1000um

FAQ:

Q1:What kind of PCB file format can you accept for production?
A: Gerber, PROTEL 99SE, PROTEL DXP, POWER PCB, CAM350, ODB+(.TGZ)

Q2. What any other information should be offered except for file?

A: Following specifications are needed for quotation:
1) Base material
2) Board thickness:
3) Copper thickness
4) Surface treatment:
5) color of solder mask and silkscreen
6) Quantity

Q3. No PCB file/GBR file, only have the PCB sample, can you produce it for me?

A: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it.

Q4. What’s the BOM?

A: BOM is a Bill of Materials that list the components required to build your project. BOM’s include part number, brand, reference designator , quantity, and description of parts that need to be assembled.

Q5. Where are your circuit boards manufactured?

A: As a China-based professional PCB manufacturer, all circuit boards are manufactured in China.
