1.5oz Multilayer Pcb Fabrication FR4 Printed Circuit Board Pcb 4 Layer
1.5oz Multilayer Pcb Fabrication FR4 Printed Circuit Board Pcb 4 Layer
Multilayer Printed Circuit Board Multilayer Circuit Board Electronic Circuit Board Design Types Of Printed Circuit Board
4L multilayer board PTH
Item type: 4L multilayer board PTH
Finished surface treatment: ENIG, 2u" (0.05 - 0.1 µm gold over 3 - 5 µm of Nickel.)
Finished PCB thickness (mm): 1.6mm, with tolerance +/-10%
Specific raw material requirements:UL94V-0, FR4, TG170, CAF-ANTI
Finished copper weight of outer layer: 1.5 oz weight
Inner copper weight : 1oz base weight
Plating thickness of through hole: 18 microns
Without countersink hole and coutersunk hole, and counter bore hole.
With impedance control, press-fit hole and plating slot.
Smallest hole size is 0.3mm
PTH hole tolerance: +/-0.075mm
Solder resist color: 2 sides, black
Silkscreen color: 2 sides, white
V-CUT and routed for circuit profile

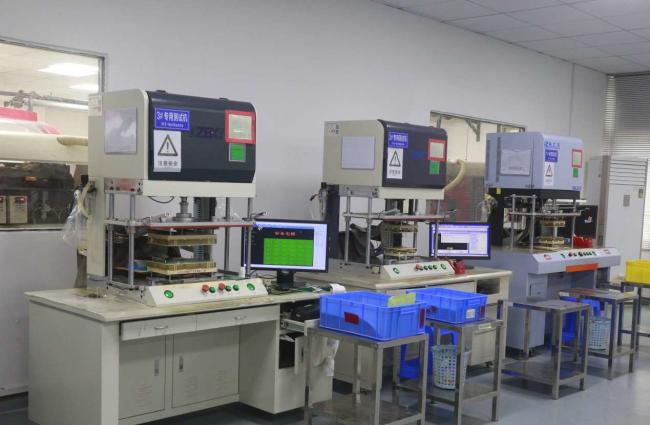

All PCBs need to be e-tested
IPC class 2
| PCB Layer | 4L multilayer board PTH |
| PCB surface finished | Immersion gold 2u" (0.05 - 0.1 µm gold over 3 - 5 µm of Nickel.) |
| PCB material requirement | UL94V-0, FR4, TG170, CAF-ANTI |
| PCB thickness finished | 1.6mm finished, with tolerance +/-10% |
| Smallest hole size | 0.30mm |
| PCB solder resist col | 2 sides, black |
| PCB silkscreen color | 2 sides, white |
| Copper weigh of outer layer | 1.5 oz finished weight |
| Copper weigh of inner layer | 1 oz Base Weight |
| Special requirements |
With impedance control, press-fit hole and plating slot |
FAQ:
1. What service can you provide?
Printed Circuit board, Printed Circuit Assembly, Rapid Prototype order
2. How fast is your lead time?
HDI board fastest 3 WDs, 2L and 4L Rigid board fastest 24H
3. How to get quick quotation?
Please provide gerber file and details of the board(including layer, board thickness, copper thickness, surface treatment, solder mask and silkscreen color, special request if any, demand quantity, etc)
Sample:
| PCB Layer | 4L |
| PCB surface | ENIG |
| PCB material | FR4, TG135 |
| finished Copper thickness | 2/2/2/2oz |
| solder mask color | Double side, red |
| Silkscreen | Double side, black |
| Quantity | 1000pcs, 2 weeks |
4.What payment terms do you have?
T/T
