Immersion Silver Multilayer Flexible PCB Circuit Board 1.2mm 3oz

Rigid Flex PCB Rigid Flex Printed Circuit Boards Multilayer PCB Board Multilayer PCB Board Rigid Flex Circuit Boards

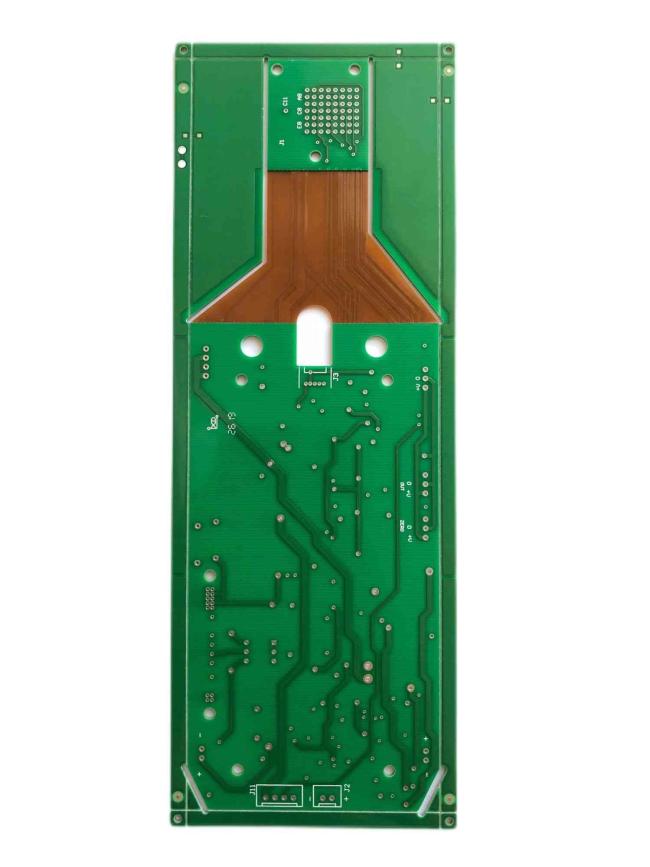

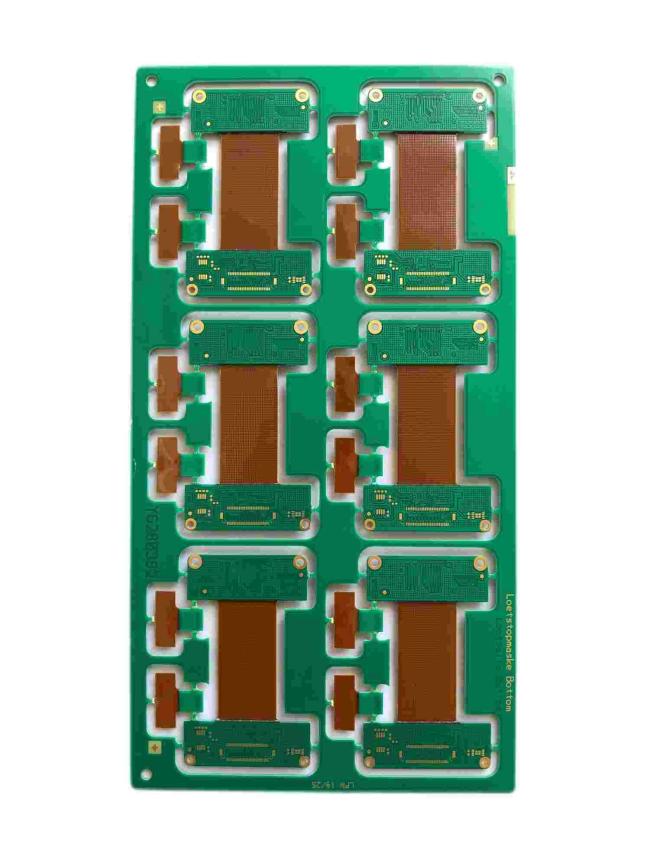

Rigid-flex PCB

PCB Type: Rigid-flex PCB

PCB Layer: Single layer, double sided, multi-layer

Raw material: PI, FR4

Copper thickness: 0.5oz, 1oz, 2oz, 3oz, 4oz, 5oz

Smallest hole size: 0.15mm

Minimum line width:0.075mm/3mil

Minimum line spacing:0.075mm/3mil

Shape processing: Die stamping, cutting, laser prototyping

Solder mask: PI solder mask coverlay film or PET solder mask covelay film lamination( Black, Red, Yellow and Green, etc)

Surface finished: Immersion Tin, Plating Nickel Gold,  ENIG,OSP, Immersion Silver, etc(mostly ENIG)

Advantages:  Space-saving, Flexible design,


A rigid flex PCB combines a rigid board and a flexible circuit. These pcbs comprise both flexible and rigid circuit substrates. Rigid flex PCBs play a vital role. These PCBs combines rigid and flexible substrates, making them an ideal option for most applications today. They are specifically designed for use in high-performance and high-speed applications. With these types of PCBs, a lot is achieved.

Rigid flex circuit boards are commonly used in many applications due to their features and benefits, they are used in telecommunication systems, aerospace equipment,automotive devices,military equipment,consumer appliances and so on.
