Waterproof Unmanned River Cleaning Boat Aluminum Alloy Hull 24h Online
Price:
Negotiable
MOQ:
1
Delivery Time:
4-6 Weeks
Brand:
ORCAUBOAT
Product Description

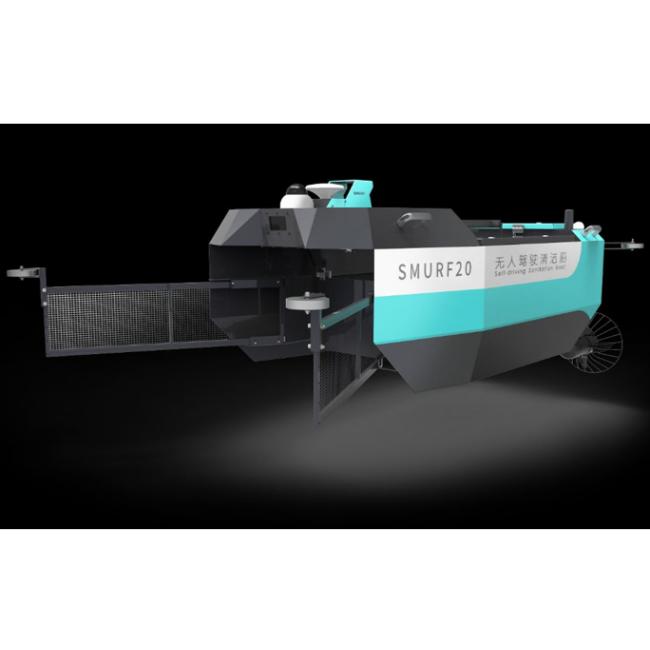

SMURF Unmanned Cleaning Boat Surface Service Robot
Product Introduction:

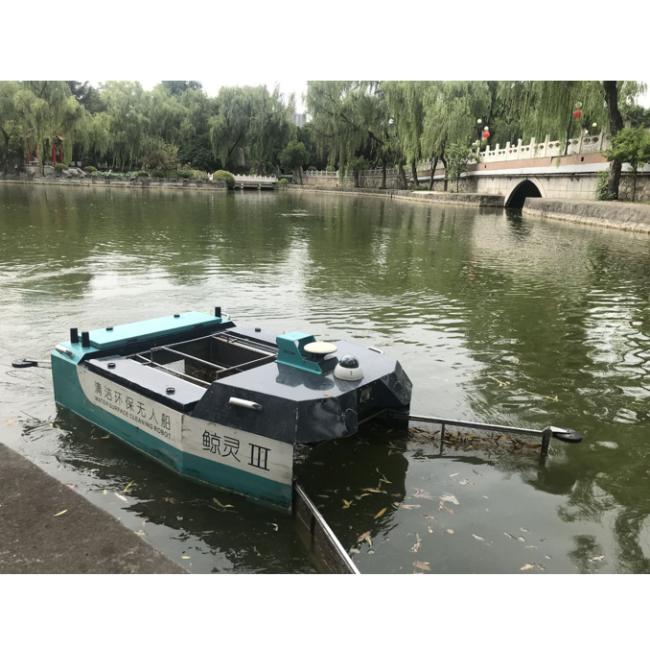

SMURF is an unmanned cleaning boat that integrates surface garbage cleaning, intelligent inspection, and data monitoring. The main application scenarios are urban inland rivers, landscape lakes, reservoirs and other waters.
Product Highlights:
- Multiple functions: The unmanned ship is mainly in the cleaning mode, and can be equipped with multiple working modules such as water quality monitoring and intelligent inspection to meet the needs of multi-scenario applications.
- Double-vessel netting technology: It can support the collaborative work of double-vessels, and is equipped with a double-vessel netting cleaning work plan to increase the scope of water cleaning and greatly improve the efficiency of water surface cleaning.
- Bluetooth smart audio: Equipped with Bluetooth smart audio, it can support remote real-time compilation, and remote calling is more convenient.
- Automatic lifting of garbage baskets: The automatic lifting function of garbage baskets has been added, which can lift the garbage baskets with one button, and adjust the different states of the garbage baskets according to the working state, further improving the cleaning efficiency and running speed.
| Category item | Smurf 20 | Traditional cleaning | Semi-automatic machiner |
| Maintenance area | 11.5acres/person | 3.2acres/person | 16.4acres/person*boat |
| Length of work | 16h/day (continuous charging) | 6h/day | 6h/day |
| Safety | Driverless, 100% safe | People + tools, high labor risk | Manned driving, driving risk is high |
| Response efficiency | 24h online response | Working time response | Working time response |
| Energy consumption | Clean energy, charging at night, working during the day | Manpower | Gasoline energy, need to be purchased at the petrol station |
| Skill requirements | Smart machine operation, easy to use, no certificate required | Skilled in using tools, skilled in ferrying boats, swimming license required | Skilled in mechanical boat driving, swimming license and crew certificate are required |
| Quality of work | Machine Cleanup, quality maintain unity | Affected by work status and attitude | Affected by work status and attitude |
Product parameters:
| Hull size (length, width and height/mm) | 2750*1660*1050 |
| Hull material | Aluminum alloy |
| Hull weight | 115KG |
| Rated load | 50KG |
| Battery life | 6-8 hours |
| Charging time | 6 hours(5%-90%) |
| Depth of immersion | 470mm |
| Maintain waters | 6.6-11.5 acres |
| Safety protection and dustproof design | The whole ship is waterproof and splash-proof |
| Power plant | Electric thruster |
| Speed of work | 1.4m/s |
| Maximum speed | 2m/s |
Basic configuration:
|
Sequence |
Names and specifications |
Remark |
Quantity |
| 1 |
Charging cabinet |
Standard |
1 |
| 2 |
Pad control panel |
Standard |
1 |
| 3 |
Wireless shore-based |
Optional |
1 |
| 4 |
Show the big screen |
Optional |
1 |
Value-added module:
| 1 | COD detection module | 1 |
| 2 | Ammonia nitrogen detection module | 1 |
| 3 | Blue-green algae detection module | 1 |
| 4 | Chlorophyll detection module | 1 |
| 5 | Water depth detection module | 1 |
| 6 | Smart wireless propaganda module | 1 |
FAQ:
- A:How many years will this boat last?
- Q:The design life of the whole ship is 5 years
- A:Can you work at night?
- Q:It works fine at night and the boat camera supports night vision.
- A:Do you have a certificate?
- Q:The whole ship has CE certification.
