115KG River Cleaning Boat Multipurpose Image Recognition
Price:
Negotiable
MOQ:
1
Delivery Time:
4-6 Weeks
Brand:
ORCAUBOAT
Product Description

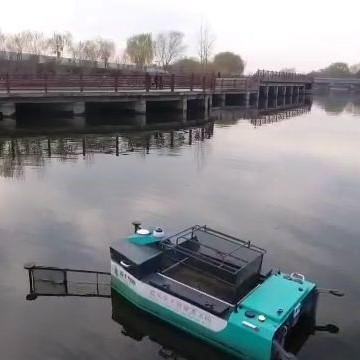

SMURF Unmanned Cleaning Boat Surface Service Robot
Product Introduction:
SMURF is an unmanned cleaning boat that integrates surface garbage cleaning, intelligent inspection, and data monitoring.
Product Highlights:
- Image recognition: Equipped with a water surface floating object recognition system, which can accurately identify multiple targets such as floating garbage on the water surface, drowning personnel, and pedestrians along the coast.
- Image recognition: Equipped with a water surface floating object recognition system, which can accurately identify multiple targets such as floating garbage on the water surface, drowning personnel, and pedestrians along the coast.
- High-precision positioning: Using the RTK high-precision positioning system, the unmanned ship can achieve high-precision positioning of centimeters in the water area, which can better adapt to complex water conditions.
- Double-vessel pulling net technology: Support double-vessel pulling net cleaning scheme, greatly increase the cleaning area of the water area, and make the water cleaning more efficient.
| Category item | Smurf 20 | Traditional cleaning | Semi-automatic machiner |
| Maintenance area | 11.5acres/person | 3.2acres/person | 16.4acres/person*boat |
| Length of work | 16h/day (continuous charging) | 6h/day | 6h/day |
| Safety | Driverless, 100% safe | People + tools, high labor risk | Manned driving, driving risk is high |
| Response efficiency | 24h online response | Working time response | Working time response |
| Energy consumption | Clean energy, charging at night, working during the day | Manpower | Gasoline energy, need to be purchased at the petrol station |
| Skill requirements | Smart machine operation, easy to use, no certificate required | Skilled in using tools, skilled in ferrying boats, swimming license required | Skilled in mechanical boat driving, swimming license and crew certificate are required |
| Quality of work | Machine Cleanup, quality maintain unity | Affected by work status and attitude | Affected by work status and attitude |
Product parameters:
| Hull size (length, width and height/mm) | 2750*1660*1050 |
| Hull material | Aluminum alloy |
| Hull weight | 115KG |
| Rated load | 50KG |
| Battery life | 6-8 hours |
| Charging time | 6 hours(5%-90%) |
| Depth of immersion | 470mm |
| Maintain waters | 6.6-11.5 acres |
| Safety protection and dustproof design | The whole ship is waterproof and splash-proof |
| Power plant | Electric thruster |
| Speed of work | 1.4m/s |
| Maximum speed | 2m/s |
Basic configuration:
|
Sequence |
Names and specifications |
Remark |
Quantity |
| 1 |
Charging cabinet |
Standard |
1 |
| 2 |
Pad control panel |
Standard |
1 |
| 3 |
Wireless shore-based |
Optional |
1 |
| 4 |
Show the big screen |
Optional |
1 |
Value-added module:
| 1 | COD detection module | 1 |
| 2 | Ammonia nitrogen detection module | 1 |
| 3 | Blue-green algae detection module | 1 |
| 4 | Chlorophyll detection module | 1 |
| 5 | Water depth detection module | 1 |
| 6 | Smart wireless propaganda module | 1 |
FAQ:
- A: How many years will this boat last?
- Q: The design life of the whole ship is 5 years.
- A: Do you have a certificate?
- Q: The whole ship has CE certification.
- A: What can your unmanned ship do?
- Q: Based on the exclusive AI visual recognition algorithm for waters, it can automatically conduct video inspections of waters and shorelines, and alert the staff in time when illegal fishing or drowning is detected.
