20mm Planetary Gearbox For Servo Motor , CCW Three Stage Planetary Gearbox
High precisions Planetary Gearbox Diameter 20mm Length 35 45 55 65mm
Product introduction:
1.High precisions Planetary Gearbox. diameter 20mm.L 35/45/ 55/6-5mm
2.Gear type: Straight teeth . Radial Play(8mm from flange) max 0.1mm
3.Output shaft : stainless steel hardened. Permissible force press fits : max.100 N
4. Main gear: Alloy Steel hardened. Permissible axial load : max.50N
5. Ring gear : Stainless steel hardened. Recommended inut speed: 8000RPM.
6.Adapter plate: Stainless steel. Operating temperature range -40℃~100℃
7.Bearing AT output :Ball bearing . Operating humidity range: 10-90%RH.
8Axial play: 0~0.3. Number of stage : 1 . 2 . 3 . 4 . Directions : CW/CCW.
9.Weight :35 / 45 / 55 / 65 g.Regular Planetary Gearbox can install with Encoder.Brush Motor and Coreless Motor.
10.Permissible load (8mm from flange) 20N 40N 40N 40N.

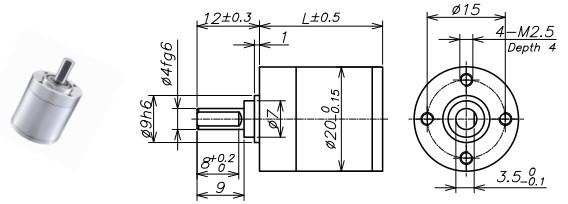

Product Detail:
| Number of stage | 1 | 2 | 3 | 4 | |||||||
| Reduction ratio X :1 |
3.8 |
4.4 | 5.4 |
14 |
16 19 20 24 29 |
53 62 76
|
72 84 89 104 |
109 128 157
|
198 231 270 285 333 410 |
316 370 389 455 479 561 |
590 690 850
|
| Motor shaft max.diameter(mm) | 3 | 2 | 3 | 2 | 3 | 2 | 3 | 2 | |||
| Gearbox length l(mm) | 18.8 | 19.6 | 23.3 | 27 | |||||||
| Max.continuous torque(N.m) | 0.2 | 0.2 | 0.25 | 0.3 | |||||||
| Max.intermitten torque(N.m) | 0.3 | 0.3 | 0.375 | 0.45 | |||||||
| Average backlash no load | 1.2° | 1.4° | 1.4° | 1.4° | |||||||
| Gearbox efficiency | 90% | 81% | 73% | 65% | |||||||
| Max.mass inertia(gcm²) | 0.1 | 0.1 | 0.1 | 0.1 | |||||||
| Gearbox weight approx(g) | 35 | 45 | 55 | 65 | |||||||
| Gearbox model | AM-20GPA-X-01 | AM-20GPB-X-01 | AM-20GPC-X-01 | AM-20GPD-X-01 | |||||||
Recommended Motor :
Suitable for Coreless Motor(w/E): AM-CL1632MAN. AM-CL1626MAN. AM-CL1633MAN. AM-CL1643MAN
AM-CL2232GAN. AM-CL2232MAN. AM-CL2242GAN. AM-CL2242MAN
Brushless Motor(w/E): AM-BL1632AN. AM-BL1640AN. AM-BL2032AN.AM-BL2040AN AM-BL2051AN
Recommended Encoder :
Suitable for Coreless Motor : Encoder S : AM-EN1611S***
Suitable for Brushless Motor : Encoder S : AM-EN1611S***. Encoder T : AM-EN1612T***
Assun Planetarty gearbox can install the corresponding with Encoder and DC Graphite Brush / Brushless Motor
Assun precision plantary gearbox application of positive element in intelligent equipment:
Service idea :
We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
