16diameter Coreless DC Motor- 18V 24V 12V 15000-20000rpm,32mm Length
Product introduction:

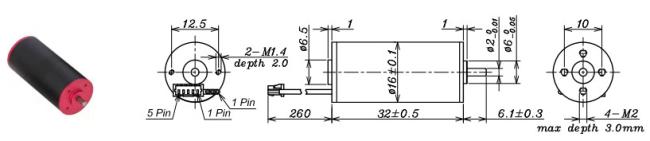

1.It's DC Brushless Motor. 32mm length.16mm diameter .
2.No load speed ±12%: 26874rpm. No load current Max150%: 77mA .Maximum power output 21.5W. Terminal resistance ±12%: 3.76Ω
3.Torque constant 6.40 mN.m/A. Speed constant 1493rpm/V.24V. 18V. 12V.
4.Brushless motors can install the corresponding with encoder and planetarty gearbox.
5.Weight :32.6g.
Product Details:
| Motor Model | AM-BL-1632AN-1827 | Unit |
| Nominal voltage | 18 | V |
| No load speed ±12% | 26874 | rpm |
| No load current Max150% | 77 | mA |
| Max cont.torque | 2.2 | mN.m |
| Rated Speed | 24516 | rpm |
| Rated Current | 420 | mA |
| Rated Power | 5.63 | W |
| Starting current | 4787 | mA |
| Stall Torque | 31 | Nm |
| Maximum power output | 21.5 | W |
| Maximum Efficiency | 76 | % |
| Terminal resistance ±12% | 3.76 | Ω |
| Inductance ( 1KHz ) | 0 | mH |
| Mechanical time constant | 2.76 | ms |
| Moment of inertia | 0.3 | gcm² |
| Torque constant | 6.40 | mN.m / A |
| Speed constant | 1493 | rpm / V |
| Speed / torque gradient | 877.7 | rpm / mN.m |
| Weight | 32.6 | g |
