High Temperature small coreless motor 30000rpm 16mm Diameter

High Temperature Small Coreless Motor 30000rpm 16mm Diameter

24V/18V/12V Coreless DC Motor,high temperature , 15000-30000rpm,40mm Length,16mm diameter

Product introduction:

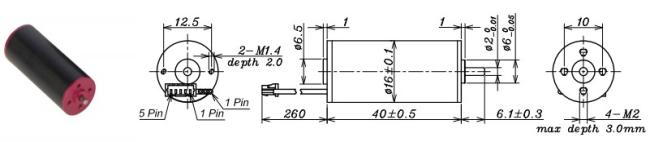

1. High temperature DC Brushless Motor. 24V/18V/12V,15000-30000rpm,40mm Length,16mm diameter

2. No load speed ±12%: 11690rpm. No load current Max150%: 38mA .Maximum power output 7.2W. Terminal resistance ±12%: 18.8Ω.

3. Torque constant 19.0mN.m/A. Speed constant 505rpm/V, Speed / torque gradient 496.2rpm/ V

4. Weight :41.8g. Maximum winding temperature: 125℃,Ambient temperatue range : -30 to 65 ℃.

5. DC Brushless motors can install the corresponding with planetarty gearbox and encoder

Product Details:

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
