High Temp Brushless DC Coreless Motor 24V 18V 12V 20mm ISO Approved

High Temp Brushless DC Coreless Motor 24V 18V 12V 20mm ISO Approved

24V 18V 12V Coreless DC Motor,High temp, 10000-25000rpm,32mm Length,20 diameter

mini coreless motor introduction:

1. High temperature DC Brushless Motor. 18V/24V/ 12V,25000-10000rpm,20mm diameter,32mm Length,

2. No load speed ±12%: 19339rpm. No load current Max150%: 90mA .Maximum power output 22.9W. Terminal resistance ±12%: 6.0Ω.

3. Torque constant 11.6mN.m/A. Speed constant 824rpm/V, Speed / torque gradient 427.0rpm/ V

4. Weight :52.4g. Maximum winding temperature: 125℃,Ambient temperatue range : -30 to 65 ℃.

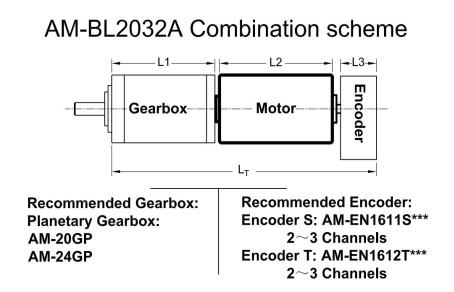

5. DC Brushless motors can install the corresponding with planetarty gearbox and encoder

Product Details:

Motor thermal resistance : 22.8 K/W.

Motor thermal time constant: 552S

Axial(dynamic): 2.5N

Radial (5mm from mounting face) : 16.0 N

Standard rear shaft diameter : 3mm

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
