7000 Rpm 24v Brushless Dc Motor 86mA Loading Current Max Coreless

DC Brushless speed driver Motor.Coreless driver MotorBrushless driver Motor.24V

Product Description:

Assun driver integrated series BLDC motors are equipped with the speed driver inside of the motor for easier installation and more convenient use.Basic functions like speed control, rotation control and signal feedback can be achieved by the integrated driver.

Product introduction:

AM-BD3260AN-2407. 24V.

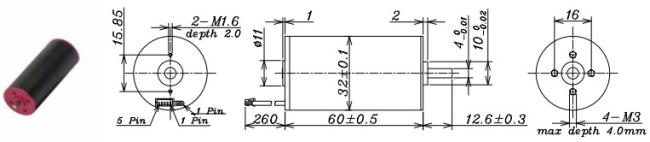

1.Diameter 32mm. Length 60mm.DC Brushless Driver Motor,8000-13000rpm.24V.

2. No load speed ±12%: 7008rpm. No load current Max150%: 86mA .

3.Torque constant 32.4mN.m/A. Speed constant 294rpm/V, Speed / torque gradient : 21.3rpm / mN.m

4.Weight :240.6g.Maximum power output 60.2W.

5. Maximum winding temperature: 85℃,Ambient temperatue range : -30 to 65℃.Motor thermal resistance : 7.8K/W.

6.DC Brushless driver motors can install the corresponding with encoder and planetarty gearbox.

Product Details:

Recommended Gearbox:

Planetary gearbox: AM-32GP. AM-36GP.

Recommended Encoder :

Encoder S: AM-EN2211S**

2~3 Channels

Encoder T: AM-EN2412T**

2~3 Channels

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
