Coreless Metal DC Brush Motor. DC Electrical Brush Motor. Brush Coreless DC Motor6V12V24V36V48V L:42mm D:22mm
Product introduction:
Assun DC Brushed Motors are Hollow cup structure, neodymium magnet provides high performance, high power density, rare metal commutator, long brush life, compact design, REE winding reduces electric corrosion Low fever. manufactured with coreless rotors for high efficiency, smooth operation and low inertia.These coreless brushed motors are perfect for applications with hogh efficiency and precision control needs.
AM-CL2242MAN-4804

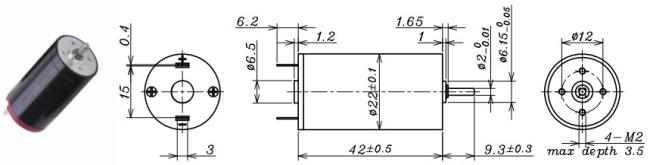

1. Coreless Metal Brush DC motor diameter 22mm. length 42mm. 48V.
2. Nominal voltage : 48V. No load speed ±12%: 4487 rpm.
3. No load current Max150% : 3.7 mA. Max cont.torque: 14.9mN.m. Rated Speed : 3591 rpm.
4. Rated Current: 150 mA. Rated Power: 5.6 W. Starting current :736 mA. Stall Torque : 74 mN.m.
5. Maximum power output : 8.7W. Maximum Efficiency : 86 %. Terminal resistance ±12% : 65.2Ω.
6. Weight : 80.1g.
7. DC Coreless Metal Brushed motor can install the corresponding with Encoder and Planetarty gearbox.
Product Details:
| Motor Model | AM-CL2242MAN-4804 | Unit |
| Nominal voltage | 48 | V |
| No load speed ±12% | 4487 | rpm |
| No load current Max150% | 3.7 | mA |
| Max cont.torque | 14.9 | mN.m |
| Rated Speed | 3591 | rpm |
| Rated Current | 150 | mA |
| Rated Power | 5.6 | W |
| Starting current | 736 | mA |
| Stall Torque | 74 | mN.m |
| Maximum power output | 8.7 | W |
| Maximum Efficiency | 86 | % |
| Terminal resistance ±12% | 65.2 | Ω |
| Inductance (1KHz) | 5.01 | mH |
| Mechanical time constant | 5.8 | ms |
| Moment of inertia | 9.12 | gcm² |
| Torque constant | 101.6 | mN.m / A |
| Speed constant | 94 | rpm / V |
| Speed / torque gradient | 60.3 | rpm / mN.m |
| Weight | 80.1 | g |
Recommended Gearbox:
Planetary Gearbox : AM-20GP. AM-24GP.
Recommended Encoder :
Encoder S : AM-EN2211S***
2~3 Channels.
Appliation:
Assun Motor application of positive element brushless precision servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
