772 MN.M High Torque Brushed Dc Motor 48v 4174mA Starting Current

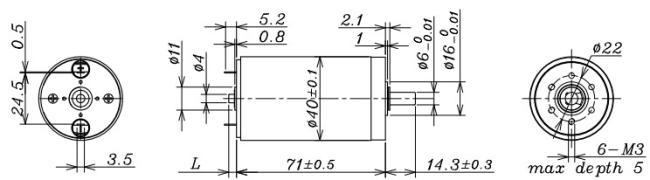

Precision Coreless Graphite Brush DC Motor.Carbon Brushed DC Motor12V24V48V  D40mm L71mm

Maximum winding temperature : 125 ℃.

Model:

AM-CL4071GAE-4803

Product Description:

Assun Graphite Brush motor is used on the commutator or slip ring of the motor. As a sliding contact for deriving and introducing current, it has

good conductivity, heat conduction and lubrication performance, and has certain mechanical strength and commutation. It is widely used in all

kinds of intelligent robots, medical equipment, electronic Mounter equipment, etc

Product Details:

Recommended Gearbox:

Planetary Gearbox : AM-40GP. AM-45GP.

Recommended Encoder :

Encoder S : AM-EN2211S***

2~3 Channels.

Encoder T : AM-EN2412T***

2~3 Channels.

Assun DC Graphite Brush Motor can install the corresponding with Encoder and Planetarty gearbox.

Assun Motor application of positive element brushless/ brushed precision servo motor in intelligent equipment

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
