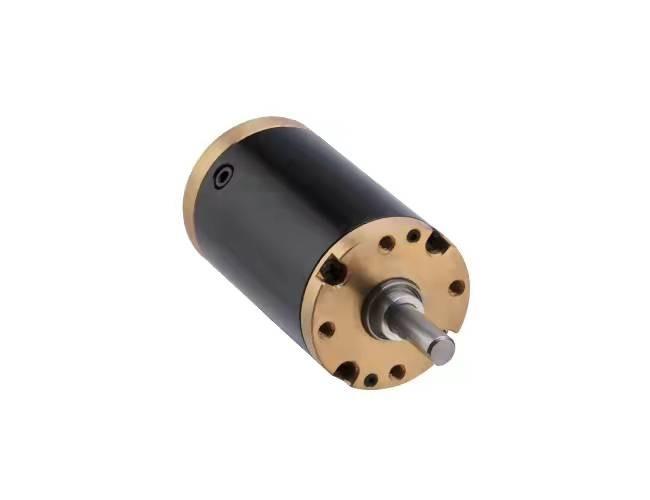

Product introduction:
1.Regular Planetary Gearbox diameter 22mm.Length: 22.3mm 27.3mm 32.3mm 37.3mm 42.6mm
2.Gear type: Straight teeth Average backlash on load: ≤2°
3.Output shaft : stainless steel hardened Radial Play : ≤ 0.1
4. Main gear: Alloy Steel Permissible axial load : ≤40N
5. Ring gear : Steel Permissible force press fits : ≤100N (5mm from mounting face)
6.Adapter plate: Copper Recommeneded inut speed ≤10000RPM.
7.Bearing AT output :Ball bearing Operating temperature range: -20~50℃.
8Axial play: 0~0.3 Operating hunidity range : 10-90%RH. Directions : CW/CCW.
Product Detail:
| Number of stage | 1 | 2 | 3 | 4 | 5 |
| Reduction ratio X :1 |
3.3 3.8 4.4 5.4
|
11 19 12 20 14 24 16 29 18 |
37 62 97 41 64 104 47 72 109 53 76 128 84 158 |
175 370 591 198 410 690 231 455 850 270 522 316 561 |
742 1996 1014 2458 1185 3027 1386 3728 1621 4592 |
| Gearbox length L (mm) | 22.3 | 27.3 | 32.3 | 37.3 | 42.6 |
| Max.continuous torque(N.m) | 0.6 | 0.8 | 1 | 1.2 | 1.2 |
| Max.intermitten torque(N.m) | 0.9 | 1.2 | 1.5 | 1.8 | 1.8 |
| Gearbox efficiency | 90% | 81% | 72% | 65% | 59% |
| Moment of inertia range(g.cm²) | 0.5 | 0.4 | 0.5 | 0.4 | 0.5 |
| Gearboxweightapprox (g) | 56 | 68 | 82 | 92 | 103 |
| Gearbox model | AM-22PA-X-01 | AM-22PB-X-01 | AM-22PC-X-01 | AM-22PD-X-01 | AM-22PE-X-01 |
Recommended Motor :
Coreless Motor(w/E): AM-CL2232MAN AM-CL2232GAN AM-CL2242MAN AM-CL2242GAN
Brushless Motor(w/E): AM-BL2040AN AM-BL2453AN
Recommended Encoder :
Suitable for Coreles Motor: Encoder S : AM-EN2211S***
Suitable for Brushless Motor : Encoder S : AM-EN1611S*** Encoder T : AM-EN1612T***
Assun Planetarty gearbox can install the corresponding with Encoder and DC Graphite Brush/ Brushless Motor
Assun precision plantary gearbox application of positive element in intelligent equipment
Service idea :
We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
