53g Small Electric Motor Carbon Brushes 9 Volt 110mA Load Current Max

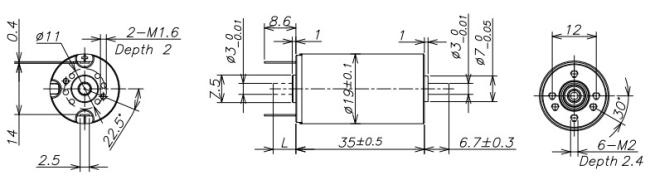

DC Graphite Brush Motor.Carbon Brushed DC Motor 6V9V12V18V24V36V48V D19mm L35mm
Model:
AM-CL1935GAE-0913
Product Description:
Assun Graphite Brush motor is used on the commutator or slip ring of the motor. As a sliding contact for deriving and introducing current, it has
good conductivity, heat conduction and lubrication performance, and has certain mechanical strength and commutation. It is widely used in all
kinds of intelligent robots, medical equipment, electronic Mounter equipment, etc
Maximum winding temperature : 125 ℃.
Product Details:
| Motor Model | AM-CL1935GAE-0913 | Unit |
| Nominal voltage | 9 | V |
| No load speed ±12% | 13100 | rpm |
| No load current Max150% | 110 | mA |
| Max cont.torque | 11.1 | mN.m |
| Rated Speed | 11089 | rpm |
| Rated Current | 1820 | mA |
| Rated Power | 12.9 | W |
| Starting current | 11250 | mA |
| Stall Torque | 72 | mN.m |
| Maximum power output | 24.8 | W |
| Maximum Efficiency | 81 | % |
| Terminal resistance ±12% | 0.8 | Ω |
| Maximum winding temperature | 125 | ℃ |
| Mechanical time constant | 6.3 | ms |
| Moment of inertia | 3.3 | gcm² |
| Torque constant | 6.5 | mN.m / A |
| Speed constant | 1470 | rpm / V |
| Speed / torque gradient | 181.0 | rpm / mN.m |
| Weight | 53 | g |
Recommended Gearbox:
Planetary Gearbox : AM-19GP.
Recommended Encoder :
Encoder S : AM-EN1611S*** 2~3 Channels.
Encoder T : AM-EN1612T*** 2~3 Channels.
Assun DC Graphite Brush Motor can install the corresponding with Encoder and Planetarty gearbox.
Assun Motor application of positive element brushless/ brushed precision servo motor in intelligent equipment
Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.
At elevated ambient temperature.load current must be reduced.
