9HV0812P1G001 9HV0812P1G601 Sanyo Denki DC Fan Axial Ball Bearing 12V 80x80x38mm

9HV0812P1G001 9HV0812P1G601 Sanyo Denki DC Fan Axial Ball Bearing 12V 80x80x38mm DC Fans

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 130.7 CFM (3.66m³/min) 4 Wire Leads
FAN 80X38MM 12VDC VANE TACH, PWM

Features:
9HV0812P1G001 DC Fans DC Fan, 80x80x38mm, 12VDC, High Performance, Guide Vane, Tachometer, PWM

General Specifications:

· Material …………………………………… Frame: Plastic (Flammability: UL 94V-0), Impeller: Plastic (Flammability: UL 94V-0)

· Expected life ……………………………… See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60˚C,

    rated voltage) Expected life at 40°C is for reference only.

· Motor protection function ……………… Locked rotor burnout protection, Reverse polarity protection For details, please refer to p. 573.

· Dielectric strength ……………………… 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame)

· Insulation resistance …………………… 10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame)

· Sound pressure level (SPL) …………… At 1 m away from the air inlet

· Storage temperature …………………… -30 to +70˚C (Non-condensing)

· Lead wire ………………………………… Red Black Sensor Yellow Control Brown

· Mass ……………………………………… 230 g

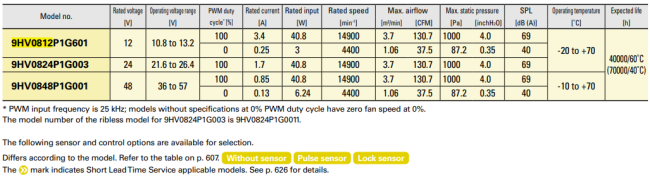

■ Specifications

The models listed below have ribs and pulse sensors with PWM control function.

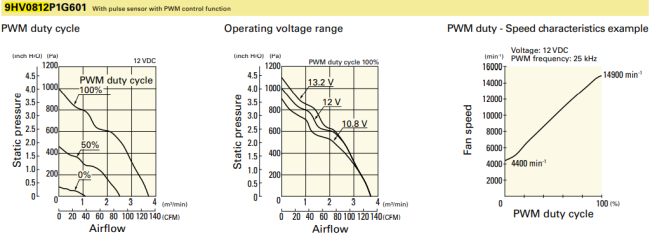

Airflow - Static Pressure Characteristics / PWM Duty - Speed Characteristics Example

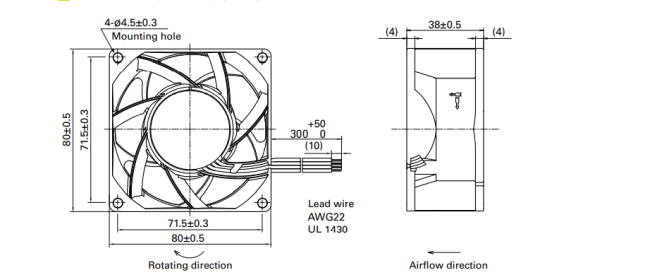

Dimensions:
