A480R18R-1 4800V 9F60 R-Rated MEDIUM VOLTAGE Fuse Motor Protection fuses

A480R18R-1 4800V 9F60 R-Rated MEDIUM VOLTAGE Fuse Motor Protection fuses

Details:

R-Rated, Medium Voltage Type; 15.88 Inch; UL Approval; 4.8 Kilovolt AC Voltage Rating; 3 Inch Diameter; 64 Kiloamp at 5.5 Kilovolt AC, 1440 Amp Interrupting Rating; 390 Amp Current Rating; 18R Designated Size; Ferrule Terminal Type; 2 Barrel(S); AMP-TRAP[R] Brand; RoHS Compliant; Body/Insulating Material Epoxy; Connection/Terminal Material Silver Plated Copper; Indication System Type Visual Indicator; Mounting Clip; Application Short Circuit Protection of Medium Voltage Motor and Motor Controller; 9F60 Model

Applications:

Short circuit protection of medium voltage motors and motor controllers.

Physical installation drawing

A480R Series:
• Volts: 4.8kVAC
• Amps: 2 to 36R
• IR: 50kA Sym

Description:

R-Rated fuses are current-limiting, high interrupting rating fuses intended for the short circuit protection of medium voltage motors and motor controllers.

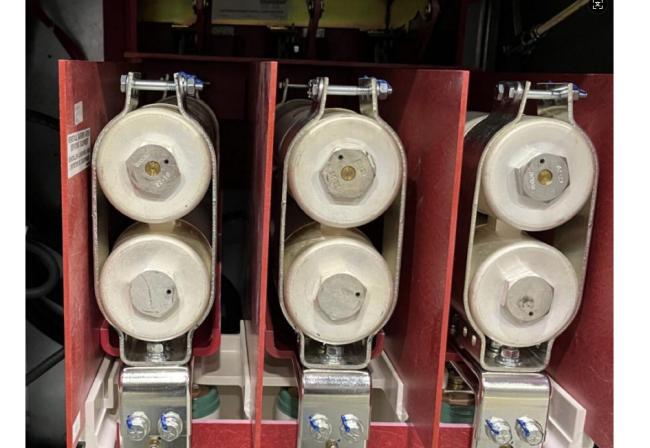

R-Rated fuses are back-up fuses that have a minimum interrupting rating, and must be coordinated with overload relays in combination motor starters. The motor starter manufacturer generally specifies the R-Rated fuse size. These fuses come with a 3 (size D) or 4 (size E) inch diameter barrels with ferrules and are mounted in spring reinforced clips.

Features/Benefits:
1500VAC/DC rated for wide range of applications
Heavy duty links
Rugged fiberglass body

Highlights:

R-Rated

UL recognized
