FL-15 50MV 75mv 100mv 5A 10A 15A 20A 30A 50A 75A 100A 150A 200A 300A 400A 500A 600A
FL-15 DC external shunt American type shunt accuracy 0.25%
FL-15 50MV 5A 10A 15A 20A 30A 50A 75A 100A 150A 200A 300A 400A 500A 600A
FL-15 75mv 5A 10A 15A 20A 30A 50A 75A 100A 150A 200A 300A 400A 500A 600A
FL-15 100mv 5A 10A 15A 20A 30A 50A 75A 100A 150A 200A 300A 400A 500A 600A

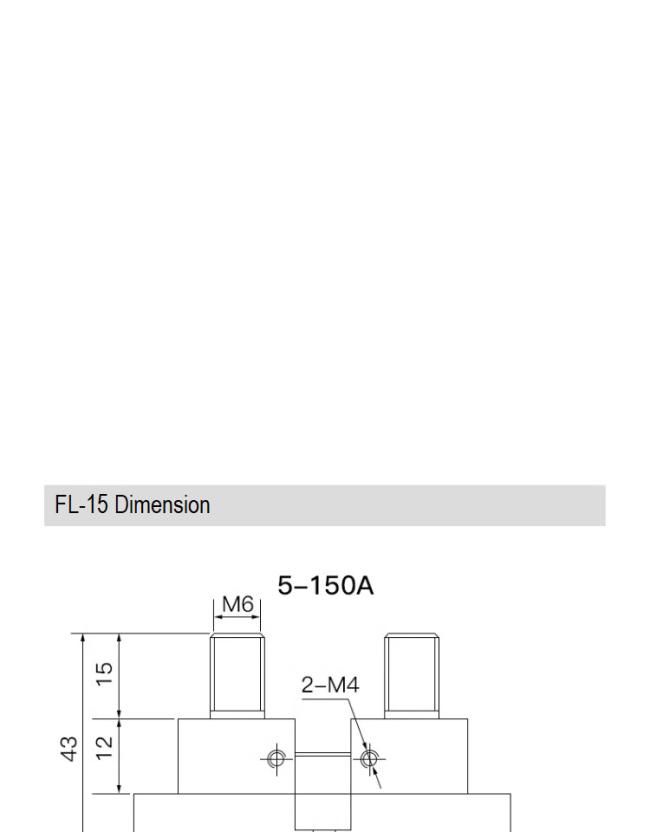

Features:
| Categories | DC External Shunt-American type shunt |
| Part Status | Active |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Item # | FL-15 |
| Specification |
FL-15 50MV 5A 10A 15A 20A 30A 50A 75A 100A 150A 200A 300A 400A 500A 600A Various specifications for choice, special specifications can be customized |
Specification :
Description:
| Accuracy Grade | 2A-4000A:0.5level |
| 5000A-10000A:1 level. | |
| Environmental conditions | -40-+60℃, relative temperature ≤95% (35 ℃) |
| Overload performance | Rated Current 120%, 2 hours. |
| Voltage drop | Regular one is 75mV,And 50mv 60mv 70mv 100mv can be customized |
| Under the load heating | The temperature rise changes tend to stabilize, the rated current 50A below no more than 80 ℃, rated current 50A above 120 ℃. |
Applications:

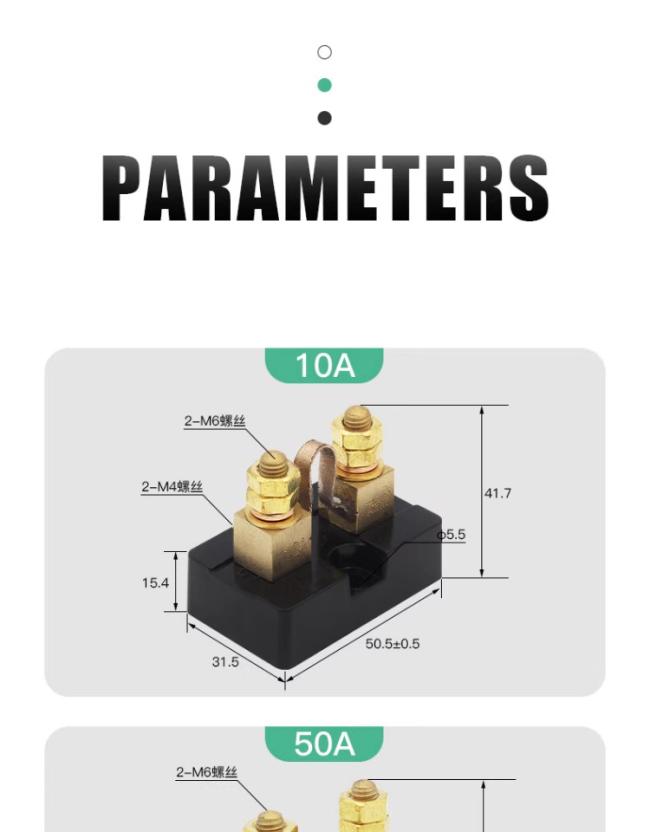

Most Simlar Shunt FL-2 75MV
|
10A
|
|
15A
|
|
20A
|
|
30A
|
|
50A
|
|
75A
|
|
100A
|
|
150A
|
|
200A
|
|
250A
|
|
300A
|
|
400A
|
|
500A
|
|
600A
|
|
750A
|
|
1000A
|

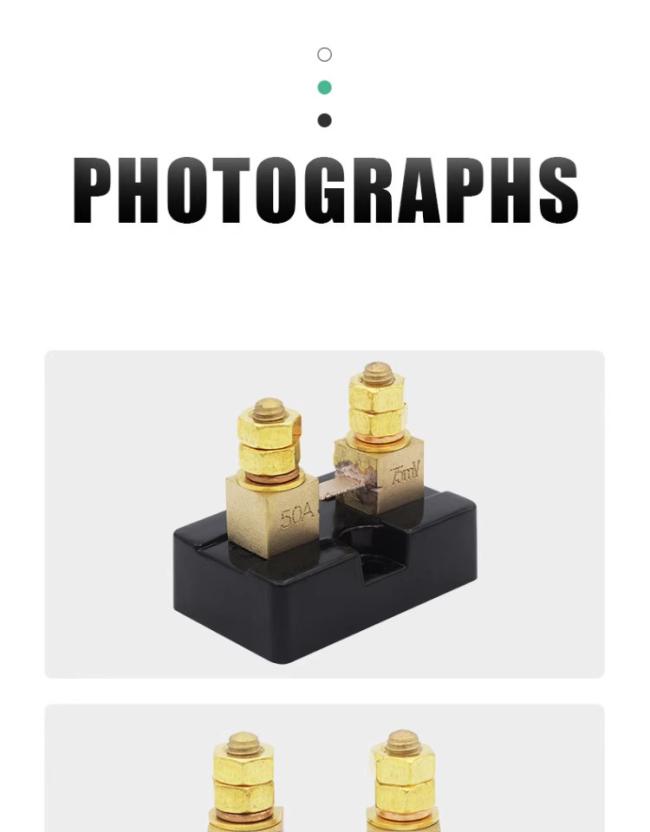

DC Ammeter Shunt
Steady and solid
Made of brass, the stable appearance is more reliable and simple to use.
high mechanical force
It can withstand high shock frequency.
High overload performance
The rated current can reach 0-120%, and the performance is excellent.
Shunt Resistor
The current shunt resistor is made of copper with Anti-rust plated, ensures the performance of stability and durability.
1, accuracy Grade: 2~4000a;0.5 level: 5000~10000a;1 level.
2, environmental conditions: -40~+60℃, relative temperature ≤95% (35 ℃).
3, overload performance: Rated Current 120%, 2 hours.
4, Voltage drop: Regular item 75mV,50mv 60mv 70mv 100mv can be customized
5, under the load heating: The temperature rise changes tend to stabilize, the rated current 50A below no more than 80 ℃, rated current 50A above 120 ℃.
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.60.0060 |
