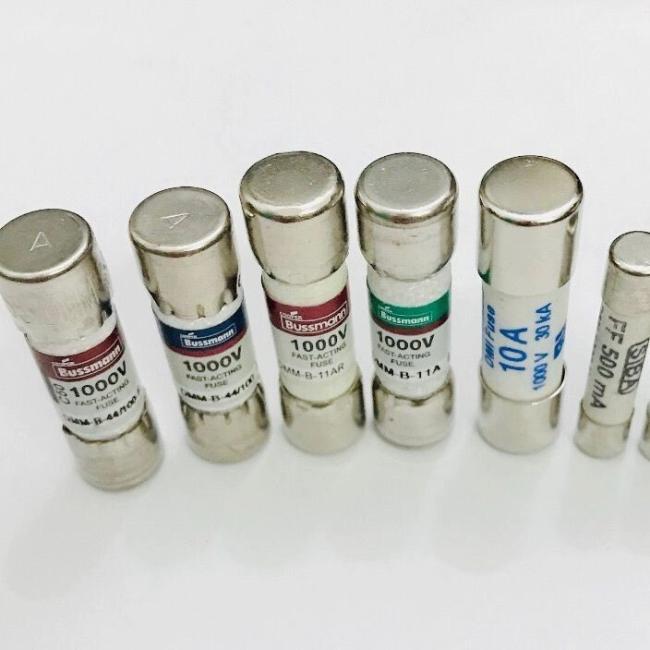

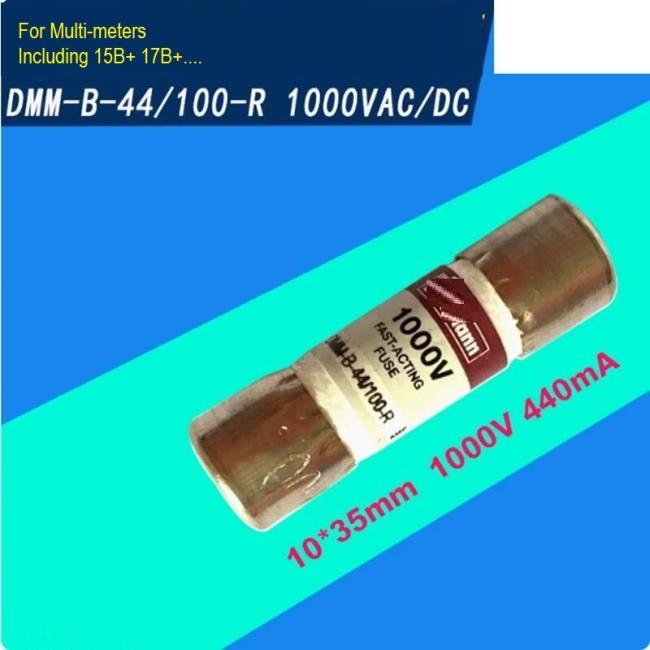

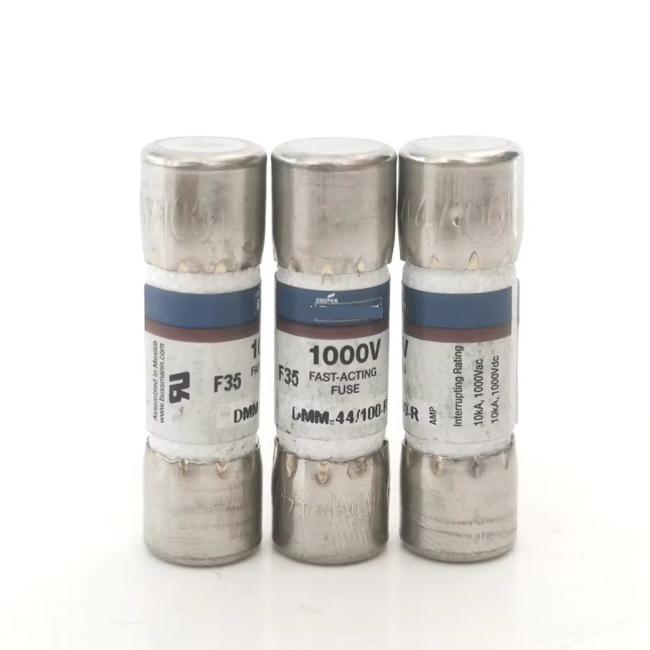

DMM-44/100 DMM-B-44-100-R 440mA 1000V DMM-B fast-acting fuses for multimeters
DMM-11A 1000VAC/DC 11A 10mm x 38mm Fast Acting Ferrule Fuses Specially for Fluke multimeter
Description:
Fast-acting supplemental fuse for multi-meters only. Intended to carry 100% of rated current indefinitely. Not intended for branch circuit protection.
Application:
Multi-meters
Features :
Color coded for 1000Vac/dc maximum voltage rating
Melamine tube construction
Nickel-plated endcaps
Rating :
DMM-B-44/100 – 10kA, 1000Vac, unity power factor and 10kA, 1000Vdc with time constant of 2.2ms. Minimum interrupt 400% of rated current at rated voltage. DMM-B-11A – 20kA, 1000Vac, power factor ≤0.2; 20kA, 1000Vdc, time constant ≥10ms.
Temperature specifications
DMM-B-44/100 - Maximum temperature 28°C in 22°C ambient temperature when carrying 100% of rated current.
DMM-B-11A - Maximum temperature 69°C in a 22°C ambient temperature when carrying 100% of rated current
Catalog numbers (amps)
DMM-B-44/100 DMM-B-11A
Features:
Color coded for 1000Vac/dc maximum voltage rating
Melamine tube construction
Nickel-plated endcaps
| Product Category: | Specialty Fuses |
| RoHS: | Details |
| DMM-B | |
| Specialty Fuses | |
| Cartridge Fuses | |
| 0.44 A | |
| 1 kVAC | |
| 1 kVDC | |
| 10 kA | |
| Holder | |
| Clip | |
| Fast Blow | |
| 10.3 mm x 35mm | |
| Without Indicator | |
| 10pcs/box | |
| Brand: | Bussmann / Eaton |
| Diameter: | 10 mm |
| Length: | 35mm |
| Product Type: | Ferrule Fuse, Melamine Material |
| Packing quantity per box | 10 |
| Subcategory: | Fuses |
| Type: | Ferrule Fuse |
| Unit Weight: | 0.336000 oz |
Typical applications : Set up on multi-meters.
