LP-CC-30 30A LP-CC-25 25A LP-CC-20 20A LP-CC-15 15A LP-CC-12 12A LP-CC-10 10A LP-CC-9 9A LP-CC-8 8A LP-CC-7 7A LP-CC-6 6A LP-CC-5 5A LP-CC-4 4A LP-CC-3 3A LP-CC-2 2A LP-CC-1 1A

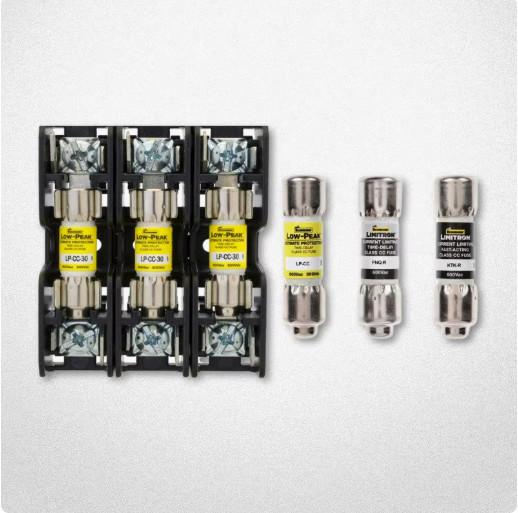

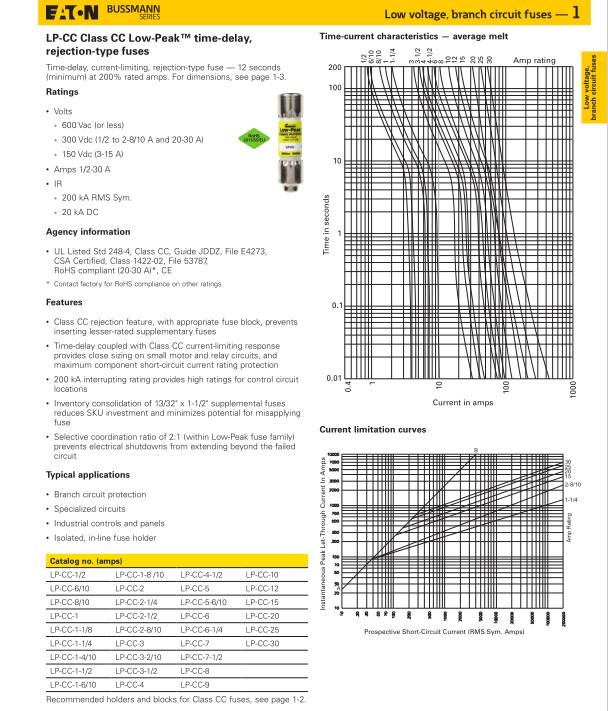

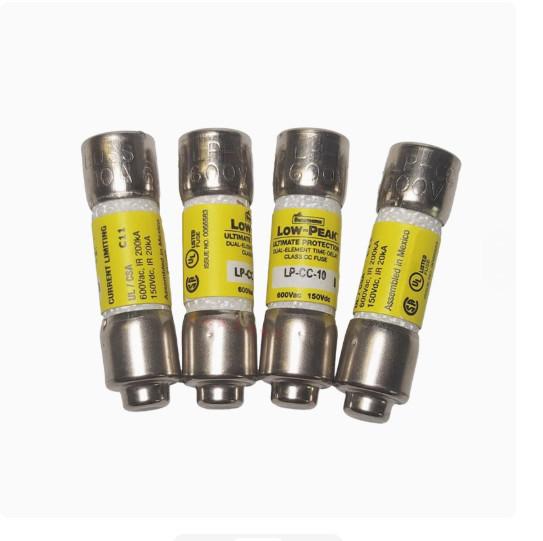

LP-CC Class CC Low-Peak time-delay rejection-type fuses LP-CC-30

Time-delay, current-limiting, rejection-type fuse — 12 seconds (minimum) at 200% rated amps.

600 Vac (or less) 300 Vdc (1/2 to 2-8/10 A and 20-30 A) 150 Vdc (3-15 A)

Applications:

Provides motor overload, ground fault and
short-circuit protection
Helps protect motors against burnout from
overloads
Helps protect motors against burnout from
single-phasing on three-phase systems
Simplifies and improves blackout prevention(selective coordination)
Dual-element fuses can be applied in circuits subject to temporary motor overloads and surge
currents to provide both high performance short-circuit and overload protection
The overload element provides protectionagainst low level overcurrent of overloads
and will hold an overload which is five times greater than the ampere rating of the fuse for a minimum of ten seconds.
