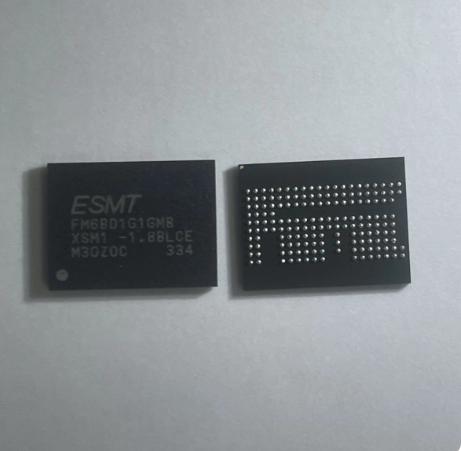

FM6BD1G1GMB-1.8BLCE 1G+1G (NAND Flash + LPDDR2) FM6BD1G1GMB(2M) FM62D1G1GMB (2G) FM6BD1G1GMB (2G)
Price:
Contact us
MOQ:
10pieces
Delivery Time:
Negotiable
Product Description
FM6BD1G1GMB-1.8BLCE 1G+1G (NAND Flash + LPDDR2) FM6BD1G1GMB(2M) FM62D1G1GMB (2G) FM6BD1G1GMB (2G)
Description :FM6BD1G1GMB 1.8V 1Gb NAND Flash (128Mbx8) 1.8V 1Gb LPDDR2 SDRAM (32Mbx32) 45ns 400/533MHz 10.5x8 (mm) 162BGA
FM6BD1G1GMB-1.8BLCE
More MCP Flash Memory ICs Part number:
| 1G+1G (NAND Flash + LPDDR2) | |||
| Part_ Number | Description | Speed(MHZ) | Package |
| FM6BD1G1GMB(2M) | 1.8V 1Gb NAND Flash (128Mbx8) + 1.8V 1Gb LPDDR2 SDRAM (32Mbx32) | 45ns, 400/533MHz | 10.5x8 (mm), 162 ball |
| FM62D1G1GMB (2G) | 1.8V 1Gb NAND Flash (128Mbx8) + 1.8V 1Gb LPDDR2 SDRAM (64Mbx16) | 45ns, 400/533MHz | 10.5x8 (mm), 162 ball |
| FM6BD1G1GMB (2G) | 1.8V 1Gb NAND Flash (128Mbx8) + 1.8V 1Gb LPDDR2 SDRAM (32Mbx32) | 45ns, 400/533MHz | 10.5x8 (mm), 162 ball |
| 2G+1G (NAND Flash + LPDDR2) | |||
| Part_ Number | Description | Speed(MHZ) | Package |
| FM62D2G1GXA (2U) | 1.8V 2Gb NAND Flash (256Mbx8) + 1.8V 1Gb LPDDR2 SDRAM (64Mbx16) | 30ns, 400/533MHz | 10.5x8 (mm), 162ball |
| 2G+2G (NAND Flash + LPDDR2) | |||
| Part_ Number | Description | Speed(MHZ) | Package |
| FM6BD2G2GXA(2M) | 1.8V 2Gb NAND Flash (256Mbx8) + 1.8V 2Gb LPDDR2 SDRAM (64Mbx32) | 30ns; 400/533MHz | 10.5x8 (mm), 162ball |
| FM6BD2G2GXA(2L) | 1.8V 2Gb NAND Flash (256Mbx8) + 1.8V 2Gb LPDDR2 SDRAM (64Mbx32) | 30ns; 533MHz | 10.5x8 (mm), 162ball |
| FM62D2G2GXA (2L) | 1.8V 2Gb NAND Flash (256Mbx8) + 1.8V 2Gb LPDDR2 SDRAM (128Mbx16) | 30ns; 533MHz | 10.5x8 (mm), 162ball |
| FM62D2G2GKA (2Q) | 1.8V 2Gb NAND Flash (256Mbx8) + 1.8V 2Gb LPDDR2 SDRAM (128Mbx16) | 45ns; 533MHz | 10.5x8 (mm), 162ball |
| FM6BD2G2GKA (2Q) | 1.8V 2Gb NAND Flash (256Mbx8) + 1.8V 2Gb LPDDR2 SDRAM (64Mbx32) | 45ns; 533MHz | 10.5x8 (mm), 162ball |
| 2G+2G (NAND Flash + LPDDR4x) | |||
| Part_ Number | Description | Speed(MHZ) | Package |
| FM6HZ2G2GXA (2A) | 1.8V 2Gb NAND Flash (256Mbx8) + 1.8V 2Gb LPDDR4x SDRAM (128Mbx16) | 30ns; 1866MHz | 9.5x8 (mm), 149ball |
| 4G+2G (NAND Flash + LPDDR2) | |||
| Part_ Number | Description | Speed(MHZ) | Package |
| FM6BD4G2GXB(2V) | 1.8V 4Gb NAND Flash (512Mbx8) + 1.8V 2Gb LPDDR2 SDRAM (64Mbx32) | 30ns; 533MHz | 10.5x8 (mm), 162ball |
| FM6BD4G2GXB(2X) | 1.8V 4Gb NAND Flash (512Mbx8) + 1.8V 2Gb LPDDR2 SDRAM (64Mbx32) | 30ns; 533/400MHz | 10.5x8 (mm), 162ball |
| FM62D4G2GXB (2V) | 1.8V 4Gb NAND Flash (512Mbx8) + 1.8V 2Gb LPDDR2 SDRAM (128Mbx16) | 30ns; 533MHz | 10.5x8 (mm), 162ball |
| FM6BD4G2GKA (2J) | 1.8V 4Gb NAND Flash (512Mbx8) + 1.8V 2Gb LPDDR2 SDRAM (64Mbx32) | 45ns; 533MHz | 10.5x8 (mm), 162ball |
| 4G+2G (NAND Flash + LPDDR4x) | |||
| Part_ Number | Description | Speed(MHZ) | Package |
| FM6HZ4G2GXB | 1.8V 4Gb NAND Flash (512Mbx8) + 1.8V 2Gb LPDDR4x SDRAM (128Mbx16) | 30ns; 1866MHz | 9.5x8 (mm), 149ball |
| 4G+4G (NAND Flash +LPDDR2) | |||
| Part_ Number | Description | Speed(MHZ) | Package |
| FM6BD4G4GXB(2X) | 1.8V 4Gb NAND Flash (512Mbx8) + 1.8V 4Gb LPDDR2 SDRAM (128Mbx32) | 30ns; 400/ 533MHz | 10.5x8 (mm), 162 ball |
| FM6BD4G4GXMB (2V) | 1.8V 4Gb NAND Flash (512Mbx8) + 1.8V 4Gb LPDDR2 SDRAM (128Mbx32) | 30ns; 533MHz | 10.5x8 (mm), 162 ball |
| FM6BD4G4GKMA (2J) | 1.8V 4Gb NAND Flash (512Mbx8) + 1.8V 4Gb LPDDR2 SDRAM (128Mbx32) | 45ns; 533MHz | 10.5x8 (mm), 162 ball |
| 4G+4G (NAND Flash + LPDDR4x) | |||
| Part_ Number | Description | Speed(MHZ) | Package |
| FM6HZ4G4GXB | 1.8V 4Gb NAND Flash (512Mbx8) + 1.8V 4Gb LPDDR4x SDRAM (256Mbx16) | 30ns; 1866/2133MHz | 9.5x8 (mm), 149ball |
| 8G+8G (NAND Flash + LPDDR4x) | |||
| Part_ Number | Description | Speed(MHZ) | Package |
| FM6HZ8G8GXDZB(2H) | 1.8V 4Gb x2die NAND Flash (512Mbx8) + 1.8V 4Gb x2die LPDDR4x SDRAM (256Mbx16) | 30ns; 1866/ 2133MHz | 9.5x8 (mm), 149ball |
| 16G+16G (NAND Flash + LPDDR4x) | |||
| Part_ Number | Description | Speed(MHZ) | Package |
| FM6HZ16G16GXA (2D) | 1.8V 8Gb x2die NAND Flash (1024Mbx8) + 1.8V 16Gb x1die LPDDR4x SDRAM (1Gbx16) | 30ns; 2133MHz | |
Application:
Automotive
Networking
Consumer
Set Top Box
Industrial
Display
IOT
Security Surveillance
Wearable Devices
PC Peripherals
Elite Semiconductor Microelectronics Technology Inc. (ESMT) is a professional IC design company, founded in June 1998 in Taiwan's Hsinchu Science Industrial Park. The company's main business includes own brand IC product design, manufacturing, sales and technical services. ESMT successfully went public on Taiwan Stock Exchange, code 3006, in March 2002.
ESMT SPI NAND Flash Products more in stock:
| SPI NAND | |||
| 1Gb | |||
| Part Number | Description | Speed(mhz) | Package |
| F50L1G41LB(2M) | SPI NAND Flash, 3.3V | 104MHz | 8-contact WSON |
| F50D1G41LB(2M) | SPI NAND Flash, 1.8V | 50MHz | 8-contact WSON |
| F50L1G41XA(2B) | SPI NAND Flash, 3.3V | 104MHz | 8-contact WSON/ 24 Ball BGA |
| 2Gb | |||
| Part Number | Description | Speed(mhz) | Package |
| F50L2G41XA(2B) | SPI NAND Flash, 3.3V | 104MHz | 8-contact WSON |
| F50L2G41XA (2BE) | SPI NAND Flash, 3.3V | 104MHz | 8-contact LGA |
| F50D2G41XA(2BE) | SPI NAND Flash, 1.8V | 83MHz | 8-contact LGA |
| F50D2G41XA(2B) | SPI NAND Flash, 1.8V | 83/ 104 MHz | 8-contact WSON |
| 4Gb | |||
| Part Number | Description | Speed(mhz) | Package |
| F50D4G41XB(2X) | SPI NAND Flash 1.8V | 83MHz | 8-contact LGA |
| F50L4G41XB(2X) | SPI NAND Flash, 3.3V | 104MHz | 8-contact WSON |
| F50D4G41XB(2XE) | SPI NAND Flash 1.8V | 83MHz | 8-contact LGA |
