HDP1100-D2 Hydraulic Pneumatic Pump Fuel Valve Test Device Pressure 1100Bar
Price:
Negotiable
MOQ:
1Set
Delivery Time:
Stock spot
Brand:
AI LE SEN
Product Description
HDP1100-D2 Fuel Valve Test Device Pneumatic Pump Unit Maximum Pressure 1100Bar
Air Drive Section
♦ Compressed air is used to produce hydraulic pressure
♦ Works on differential surface area between the large air piston and smaller hydraulic plunger
♦ Differential is represented by the pressure ratio of the pump
♦ Calculation of hydraulic pressure:Compressed Air Pressure x Compression Ratio
♦ Warning: Please use clean compressed air
How Pumps Work
♦ Air pilot operated spool provides automatic cycling of air from one side of the piston to the other
♦ At the end of each stroke, the air piston activates a pilot valve that will cause the spool to shift
♦ The spool shifting will supply air to one side of the piston while venting the other side of the piston
♦ This alternating action continues until the pump reaches its stall pressure
Teature
| Type | HDP1100 |
|
Air Side Material:
|
Anodized Aluminum
|
| Rated maximum pressure | Input Air Pressure 11Bar |
| Area Ratio | 1:100 |
| Displacement per stroke | 0.4L/min |
| Pump speed | 30 per minute |
|
Maximum displacement |
About. 1.2l/min 8.0 bar air input |
|
weight(Kg) |
24 |
|
Pressure oil outlet: |
Customized on demand |
| Operating Temperature Range |
0° to 140°F (-18° to 80°C)
|

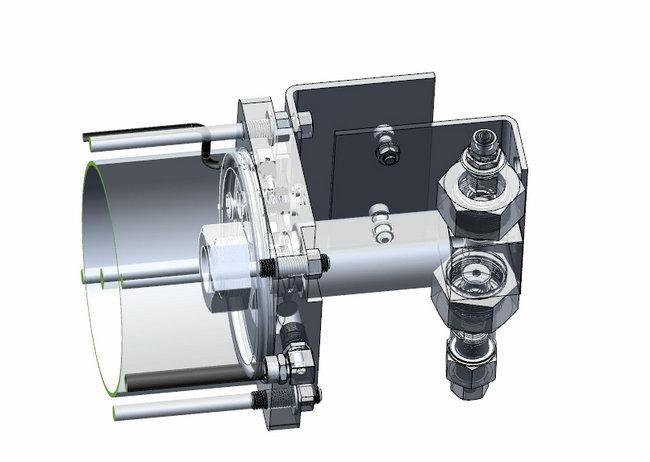

Transparent image of the pump
