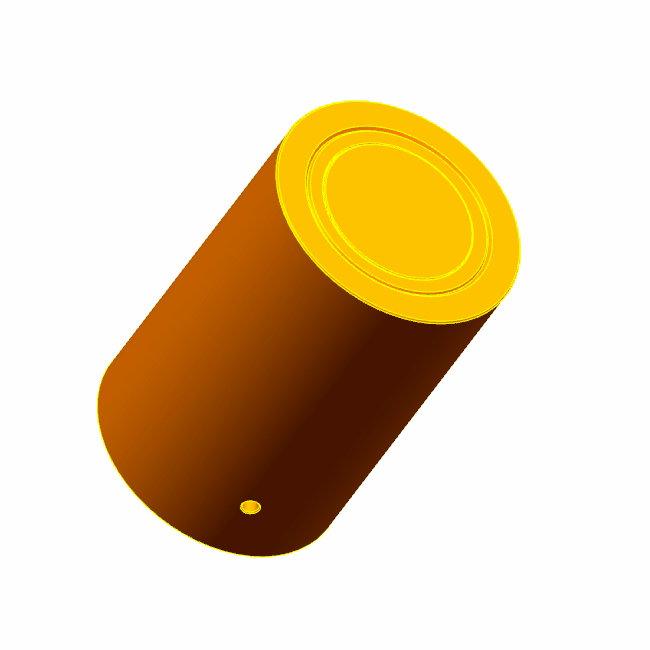

Single Acting Aluminum Hydraulic Cylinder Jack RAC Series 218 To 1589KN
RAC-Series, Single-Acting Aluminum Cylinder Load Capacity 218-1589KN
Product description
1. RAC cylinder surfaces are hardened to prevent damage and extend cylinder life.
2. All models of cylinders are equipped with handles.
3. High-strength return spring uses oil cylinder to return quickly.
4. Light weight and easy to transport.
5. All RAC Series cylinders are equipped with bolt-on, removable hard saddles.
Technology
| Type |
Jacking force KN(TON) |
Stroke mm |
Height mm |
Outside diameter mm |
Weight Kg |
| RAC-202 |
218(20) |
50 | 174 | 85 | 3.5 |
| RAC-204 | 100 | 224 | 85 | 4 | |
| RAC-206 | 150 | 274 | 85 | 4.5 | |
| RAC-302 |
310(30) |
50 | 181 | 100 | 4.5 |
| RAC-304 | 100 | 231 | 100 | 5.2 | |
| RAC-306 | 150 | 281 | 100 | 6 | |
| RAC-502 |
497(50) |
50 | 186 | 130 | 8.7 |
| RAC-504 | 100 | 236 | 130 | 10 | |
| RAC-506 | 150 | 286 | 130 | 11 | |
| RAC-1004 |
1002(100) |
50 | 271 | 180 | 20 |
| RAC-1006 | 100 | 321 | 180 | 22 | |
| RAC-1008 | 150 | 371 | 180 | 24 | |
| RAC-1506 | 1590(150) | 150 | 343 | 230 | 34 |
Notice:
1. The mounting holes on the bottom of the aluminum cylinder are designed to mount the steel base and cannot be used to carry the load of the cylinder. The steel base protects the cylinder from damage and the steel base must not be removed.
2. Optional reclining saddle, maximum 5° inclination.
3. RACL Series Aluminum Nut Locking Cylinders are your ideal choice when mechanical locking of loads is required. Never use the pressure of the pump to lock the load, it is dangerous.
4.When the standard oil cylinder does not meet your requirements, you can request a separate design for you.
5. Pictures are produced by software, not in kind.
