Indoor 8 Ports Wall Outlet Fiber Optic Nap Box SC Coupler And Pigtails
Price:
Negotiatable
MOQ:
100
Delivery Time:
Negotiable
Brand:
Fongko

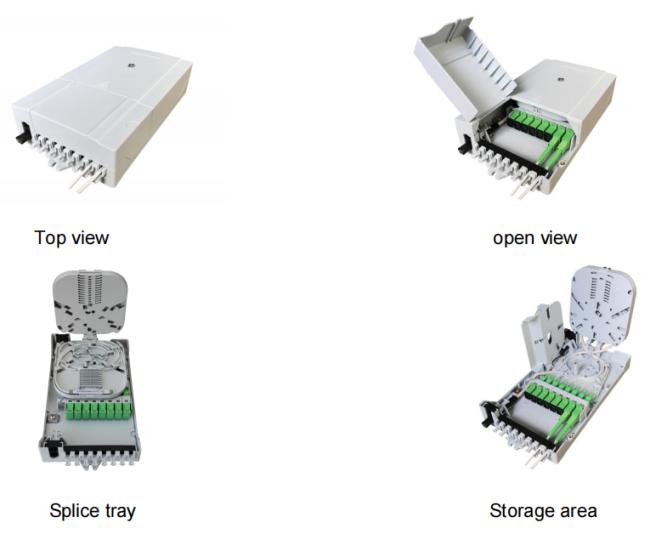

Product Description
FTTH 8 Cores Fiber Optic Termination Box with SC Adapter and Pigtails
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features:
1, Total enclosed structure.
2, Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP54.
3, Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4, Cable, pigtails, patch cords running through own path without disturb each other, cassette SC/LC/PLC adaptor installation,easy maintenance.
5, Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6, Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

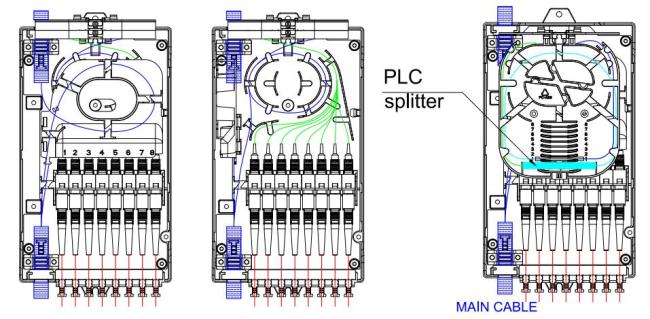

Product Cable Ways
Specification:
1,Environmental requirement
Working temperature:-40℃～+85℃
Relative humidity:≤85%(+30℃)
Atmospheric pressure:70KPa～106Kpa
2,Main technical datasheet
Insertion loss:≤0.3dB
UPC return loss:≥50dB
APC return loss:≥60dB
Life of insertion and extraction:＞1000 times
