FONGKO Optical Time Domain Reflectometer 1310nm 1550nm 26 / 24dB OTDR
Price:
Negotiatable
MOQ:
1 Pieces
Delivery Time:
Negotiable
Brand:
FONGKO
Product Description

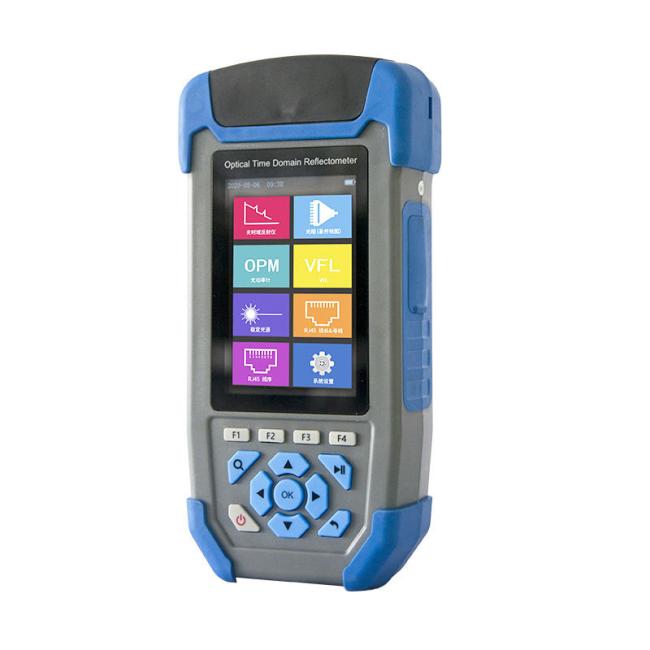

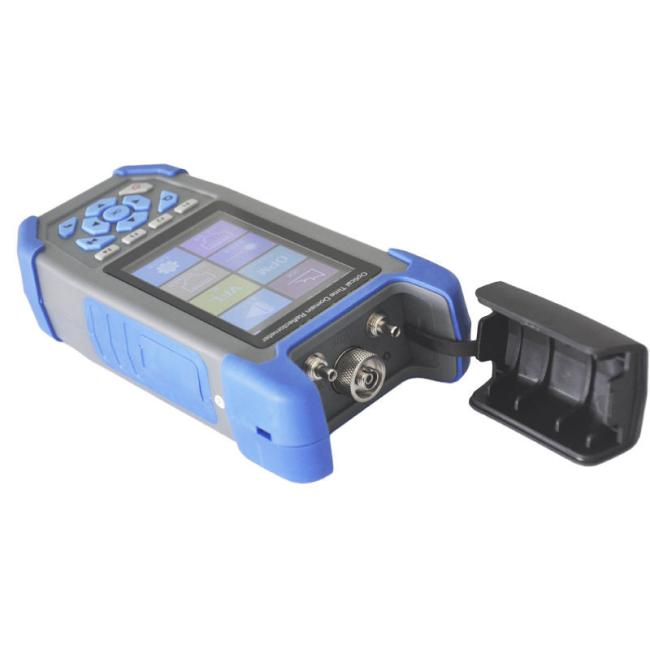

Optical fiber instrument Mini OTDR
Optical Time Domain Reflectometer(OTDR) is a sophisticated optoelectronic integrated instrument made by using ayleigh scattering and backscattering produced by Fresnel reflection when light is transmitted in optical fiber.
OTDR can measure the length of optical fiber, transmission attenuation of optical fiber, joint attenuation and fault location.
It first sends a signal to the optical fiber, and then observes what information is returned from a certain point. This process is repeated, and the results are averaged and displayed as a trace, which depicts signal strength and weakness throughout the length of fiber.
|
Model
|
FKEQU-196
|
|
|
Wavelength
|
1550nm±20nm
|
|
|
Fiber Type
|
G.652 SM Fiber
|
|
|
Dynamic Range
|
22dB
|
|
|
Event Blind Zone
|
3m
|
|
|
ATT Blind Zone
|
8m
|
|
|
Test Range
|
500m~60km
|
|
|
Pulse Width
|
3ns~10us
|
|
|
Ranging Accuracy
|
±(1m+Sampling Interval +0.005%×Test Distance)
|
|
|
Loss Accuracy
|
±0.2dB/dB
|
|
|
Sampling Points
|
16k~128k
|
|
|
Sampling Resolution
|
0.05m~8m
|
|
|
Reflection Accuracy
|
±3dB
|
|
|
Data Storage
|
Internal:≥600;External:TF Card
|
|
|
Laser Safety Level
|
Class Ⅱ level
|
|
|
File Format
|
SOR Standard File Format
|
|
|
Connector
|
FC/UPC(Interchangeable SC,ST)
|
|
|
OPM
|
||
|
Wave Range
|
800nm~1700nm
|
|
|
Interface Type
|
Universal Joint FC/SC/ST
|
|
|
Test Range
|
-50dBm~+26dBm
|
|
|
Uncertainty
|
±5%
|
|
|
Frequency Identification
|
CW/270/330/1k/2kHz
|
|
|
Calibration Wavelength
|
850/980/1300/1310/1490/1550/1625/1650nm
|
|
|
LS
|
||
|
LD Type
|
FP-LD
|
|
|
Output Wavelength
|
1550nm±20nm
|
1310nm/1550nm±20nm
|
|
Output Power
|
≥-5dBm
|
|
|
Modulation Frequency
|
270/330/1k/2kHz
|
|
|
Stability
|
CW,±0.5dB/15min(Test after15mins of preheating)
|
|
|
Connector
|
FC/UPC(Interchangeable SC,ST)
|
|
|
VFL
|
||
|
Work Wavelength
|
650nm±20nm
|
|
|
Output Power
|
≥10mW
|
|
|
Mode
|
CW/1Hz/2Hz
|
|
|
Connector
|
FC/SC/ST
|
|
|
Test Range
|
300m
|
|
|
Other Parameters
|
||
|
Dispaly
|
3.5 inch Color LCD
|
|
|
Data Interface
|
Micro USB
|
|
|
External Storage
|
TF Card
|
|
|
Power Supply
|
Polymer Li-battery:3.7V,4000mAh
|
|
|
Power Adapter:5VDC,2A
|
||
|
Battery Life
|
Standby>20h;Measuring Time>12h
|
|
|
Operating Temperature
|
-10℃~+50℃
|
|
|
Storage Temperature
|
-40℃~+70℃
|
|
|
Relative Humidity
|
0~95%Non Condensing
|
|
|
Weight
|
≤350g
|
|
|
Dimension
|
173mm×82mm×37mm
|
|
|
Functions:OTDR/OPM/OLS/VFL/Loss Tester/Flashlight
|
||
