SC Female To FC Male Hybrid Fiber Optic Adapter FTTH Metal Single Mode
Price:
Negotiatable
MOQ:
100
Delivery Time:
Negotiable
Brand:
Fongko
Product Description

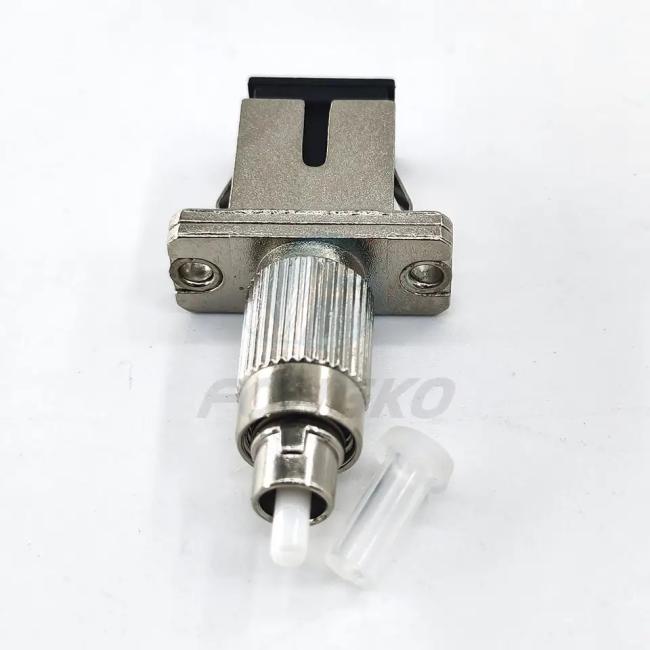

SC Female to FC Male Fiber Optic Patch Adapter
The embedded optical fiber and the appropriate matching technology of connecting the core and sleeve can It provides users with a simple and reliable solution when two or more different optical fiber transmission joints are connected, Users can choose 9 / 125, 50 / 125, 62.5/125 and other fiber core modes and corresponding connector types as needed.
Insertion loss:
Single mode (sm-9 / 25) ≤ 0.3dB
Multimode (mm-50 / 125, mm-62.5 / 125) ≤ 0.3dB
Return loss:
PC ≥ 45dB; UPC≥50dB; APC≥60dB
Consistency: 0.1dB
Operating temperature: - 40 ℃ ~ + 75 ℃
Usage times: ≥ 1000 times
Characteristics
1. Using high precision ceramic ferrule
2. Low insertion loss and high return loss
3. Excellent stability and high repetition
4. Referring to NTT, IEC, GR326 standard
5. 100% Optic test (Insertion Loss & Return Loss)
