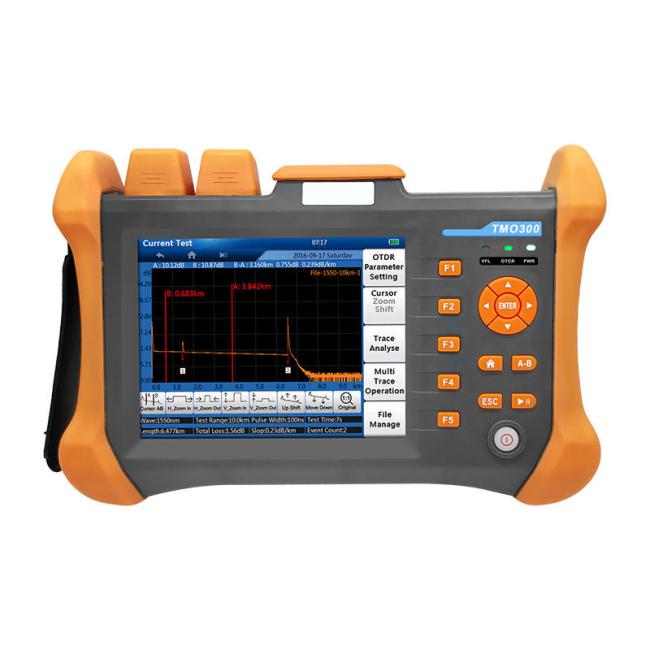

OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market
OTDR TMO300 Multi-function 5.6 Inch 1310/1550nm Smart Mini with FC/SC Connectors 2-year Warranty Popular in FTTH Market
Mini OTDR
Mini Optical Time Domain Reflectometer Features: 4.3-inch multi-touch capacitive screen, support new gesture zoom function, screen screenshot Intelligent multi-function, twelve-in-one functional module: automatic OTDR, expert OTDR, event map, optical power meter, visible red light, adjustable light source, optical loss test, RJ45 network cable to line, RJ45 network cable distance measurement, RJ45 network cable Line hunting, flashlight, end detection (optional) Automatic OTDR, no complicated settings, one-key test Expert OTDR, professional measurement mode, simultaneous display of curve, list and MAP view Event blind zone 2.5m, attenuation blind zone 8m, measurement range up to 100KM Support optical test with less than -5dBM optical signal, high isolation bilateral filtering technology, Support automatic save, SOR file format, 8G storage capacity, can store 200,000 items Support Type-C charging interface, 4000mAh polymer battery, battery life is more than 12 hours.
| Pulse Width | (SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs: (MM 850/1300NM) 5ns,10ns,20ns,50ns,100ns,500ns,1us |
| Distance Range | (SM 1310/1550NM) Dead zone test.1.3km,2.5km.5.0km,10km,20km,40km,80km,120km, (MM 850/1300NM):100m,400m,1.3km,2.5km,5km,10km,20km,40km,80km |
| Sampling Resolution | Minimum0.05m |
| Sampling Point | 128,000 |
| Linearity | ≤0.05dB/dB |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Distance Resolution | 0.01m |
| Distance Accuracy | ±(1m+measuringdistancex3x10 +sampling resolution) |
| Data Storage | 80000 groups of curve |
| VFL | 10mW,CW/2Hz |
| Interface | 3 USB ports (Type Ax2,Type Bx1) |
| Display | 5.6 inch TFT-LCD,Touching screen |
| Battery | 7.4V/4.4Ah lithium battery , support 8 hours continuous working |
| Working conditions | Working Temp:-10℃~+50℃:Storage Temp:-20℃~+70℃:Humitity:≤95%(non-dew) |
| Dimensions/Weight | 253x168x73.5mm/1.5kg (include battery) |

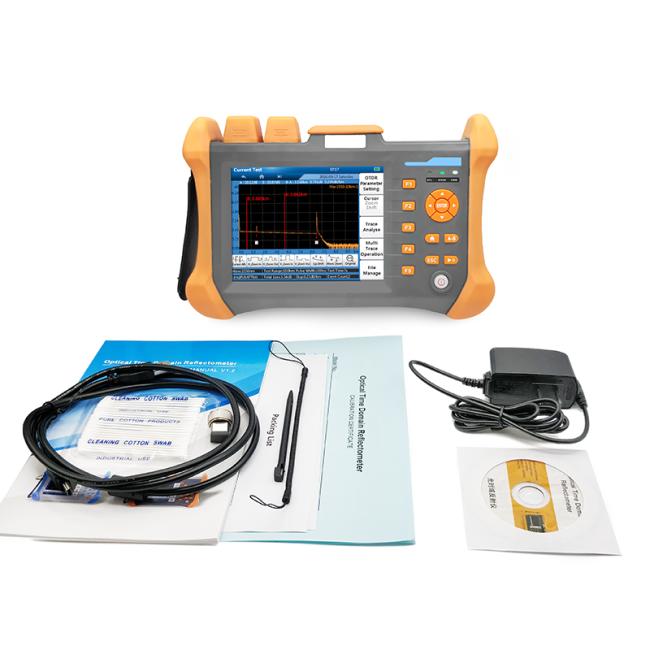

| Packing list | Straps; Adaptor; Lithium battery;FC connector,USD Cable;User Guide; CD;softbag;cleaning cotton |
