IP68 Waterproof FTTA Fiber Optic Distribution Box 10 Ports With OptiTap Adapter
Price:
Negotiatable
MOQ:
100
Delivery Time:
Negotiable
Brand:
Fongko
Product Description
IP68 10Ports Mini SC OptiTap Fiber Optic Distribution Box with Fusion 1*2 FBT and 1x8 PLC splitter
The X-BOX FiberHub supports distributed split architecture which is designed to push the PON splitters further into the network and closer to the customer’s premise with multiple levels of splitting.In order to support this network architecture we has developed a small form factor, factory sealed, closure that will house up to a 1 x 9 splitter &1 x 8 splitter & two1 x 4 . We also have a family of FTTH network access terminal and hardened fiber optic connectors to support the plug-and-play demands of the market. We offenetwork distribution points in various configurations and footprints.
The X-BOX FiberHub is ideally suited for applications where customization and future expansion is required. Various port options and connector styles allow for flexibility and customization depending on the number of outputs needed. Robust plastic design is factory sealed to guarantee IP68 ingress protection and applicable GR-3120-Core requirements.
Features

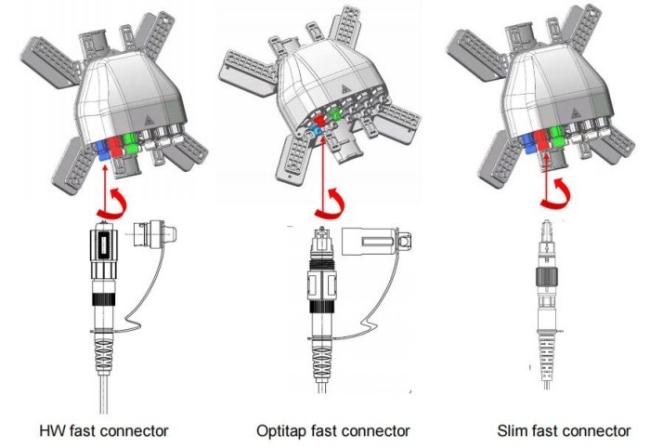

1) High compatibility: can be assembled SuperTap (OptiTap compatible), Fast SC connector, ODC, PTLC, PTMPO or power adapter;
2) Strong enough: working under 500N pulling force long term;
3) From 2 to 11 ports for single or multifiber harsh connectors;
4) Available with PLC or splice sleeve for fiber divide;
5) IP68 waterproof rating;
6) Wall-mounting, aerial installation or holding pole installation;
7) Decreased angle surface and height make sure no connector interfering when operating;
8) Cost effective: save 40% operating time
|
Model
|
FK-B22-10A |

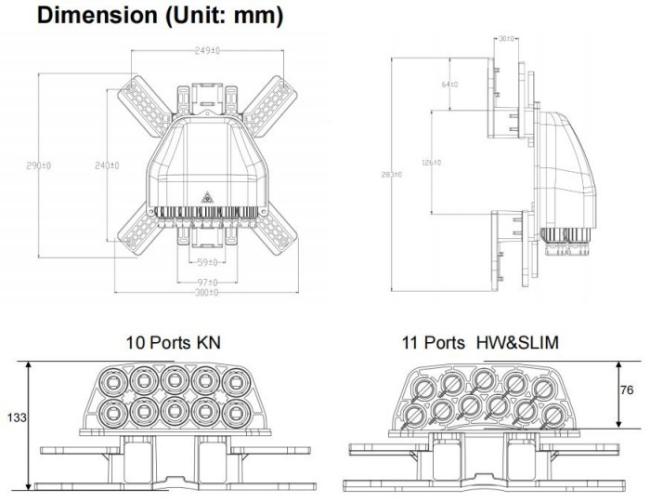

| Dimension (A*B*C) /mm |
200x187x76mm(without cover)
300x290x133mm(with Base)
|
| Max.Capacity | 10 cores |
|
Cable ports
|
3.0mm to 14mm OD cable or adapter
|
|
Cable diameter
|
In:Φ13mm; out 2x5mm
|
|
Splitter quantity
|
1x2 + 1X8 mini splitter |
| Material | ABS+PC |
|
Ingress protection
|
IP68 |
Application
1) FTTH;
2) FTTA;
3) Trunk Cable Connecting.
