Full Hybrid 10kw Solar Panel Energy System Off Grid Photovoltaic Power Station
Full Hybrid Off Grid Panel Kit 10kw Price Cost Power Solar Energy System For Home Use Photovoltaic Power Station System
Product Introduction of the Photovoltaic Power Station System:
| Surge power | 20400W |
| Maximum DC Voltage | 500VDC |
| MPPT Voltage Range | 90VDC~450VDC |
| Number of MPPT Trackers/ Maximum Input Current | 1/27A |
| Nominal Output Voltage | 220/230/240VAC |
| Output Waveform | Puresinewave |
| Efficiency(DC to AC) | 94% |
| Nominal DC Voltage | 48VDC |
| Maximum Solar Charging Current | 160A |
| Maximum AC Charging Current | 140A |
| Dimension, DxWxH(mm) | 420*310*110 |
| Net Weight(kgs) | 14.5 |
| Grass Weight(kgs) | 16 |
| Communication Port | RS232/WIFI/Remove LCD/GPRS |
| Operating Temperature | -10~50℃ |
Wide Range of Applications about the Photovoltaic Power Station System:
Photovoltaic Power Station System
Home Photovoltaic System
Base Station Power Supply System

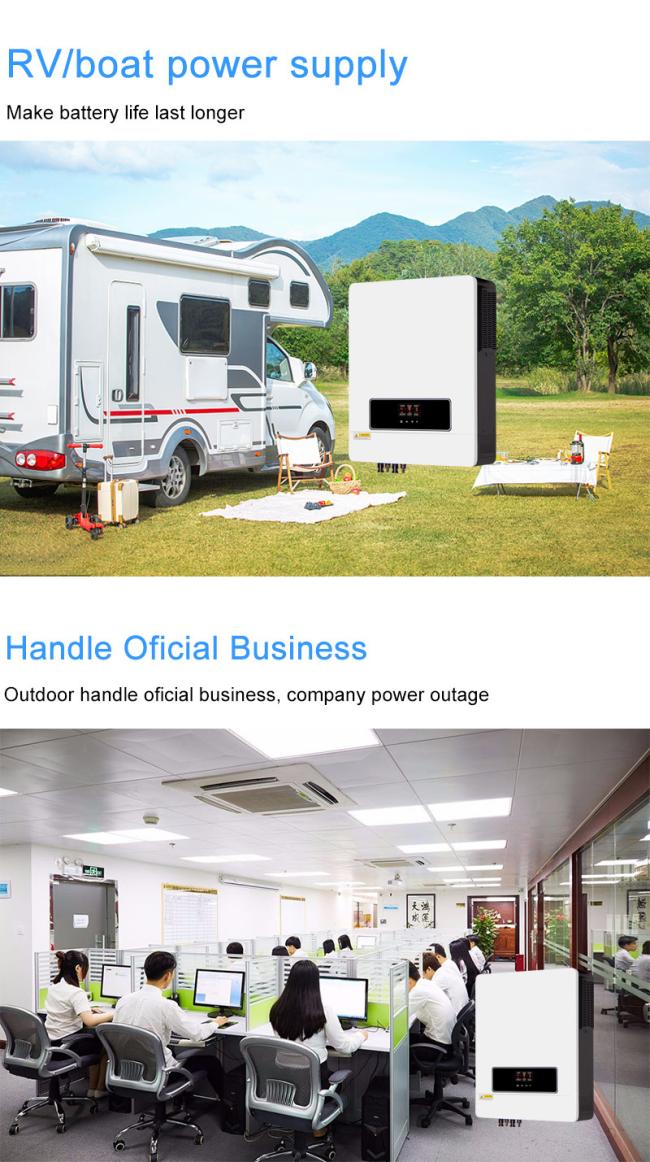

RV/boat power supply:Make battery life last longer
Handle Official Business:Outdoor handle official business,company power outage
Characteristics of the Photovoltaic Power Station System:
-Pure sine wave solar inverter
-Outputpowerfactor1.0
-WIFI&GPRS available for IOS and Android

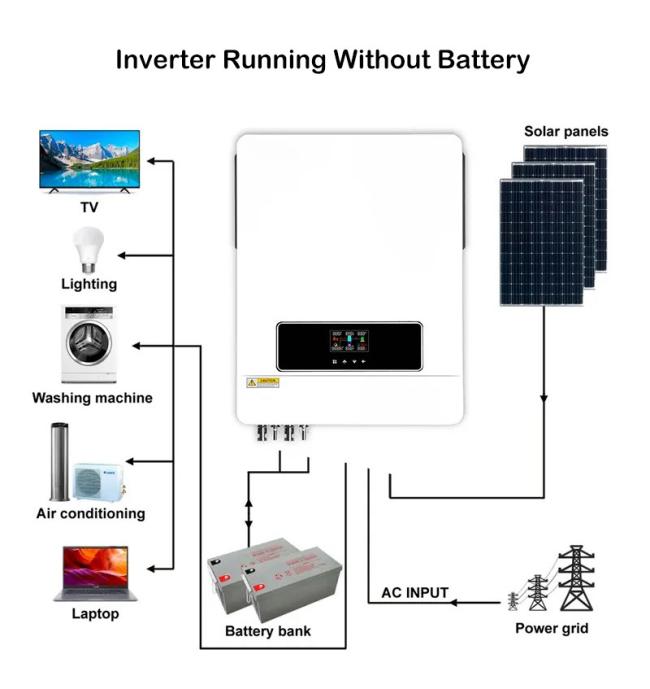

-Inverter running without battery
-One-key restoration to factory Settings
-Built-in Lithium battery automatic activation
-Built-in160AMPPTsolarcharger
-High PV input voltage range(90~450VDC)
-Built-in anti-dusk kit for harsh environment
-Smart battery charge design to optimize battery life
-Dual output
-Touch button
Company profile:
Global Sunrise Lights is a high-tech enterprise that integrates research, design, development, production, and sales of solar lighting fixtures, photovoltaic power generation systems, lithium-ion energy storage systems, solar fans, and solar indoor and outdoor lighting systems. It is a leading provider of photovoltaic off grid power generation system solutions in China, committed to the development of solar energy in the field of new energy, fire protection, construction, agriculture, healthcare Military automation control systems and other fields have been widely applied. Create a better life for humanity through continuous innovation in products and services.
